Electrical Component Locator - Instrument Panel/Center Console Component Views
›
Instrument Panel/Center Console Component Views
›
Interior HVAC Components
Interior HVAC Components
Interior HVAC Components
Component Name
Callout
HVAC Module
1
Mode Actuator
2
Air Temperature Actuator- Right
3
Recirculation Actuator
4
Blower Motor
5
Blower Motor Control Module
6
Air Temperature Actuator- Left
7

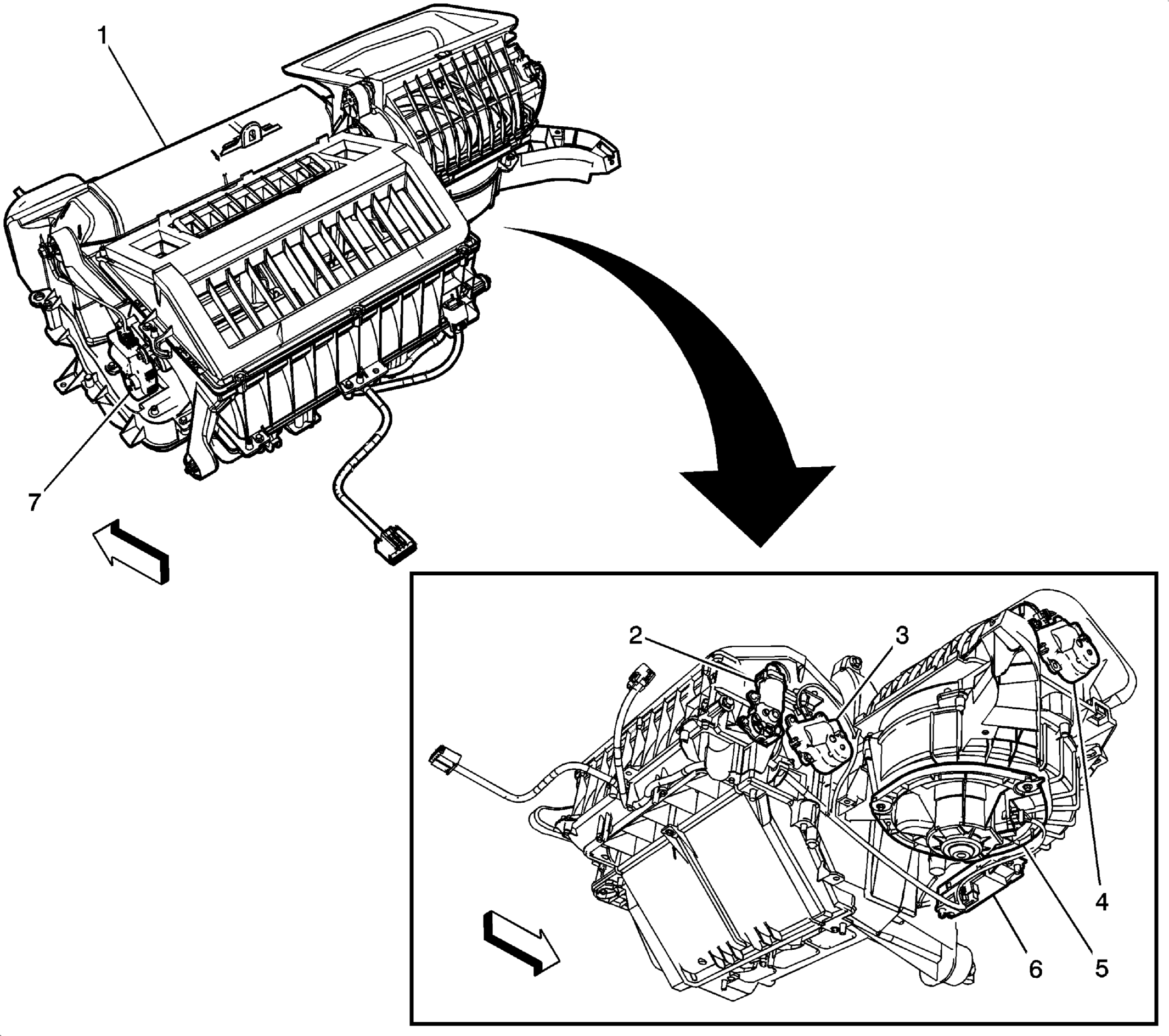

Fig 1: Interior HVAC Components
Courtesy of GENERAL MOTORS COMPANY
