Powertrain Component Views
›
Top Engine Components
Top Engine Components
Top Engine Components
Component Name
Callout
Fuel Rail Pressure (FRP) Sensor
1
Fuel Injector 1
2
Fuel Injector 3
3
Fuel Injector 5
4
Fuel Injector 6
5
Fuel Injector 4
6
Fuel Injector 2
7

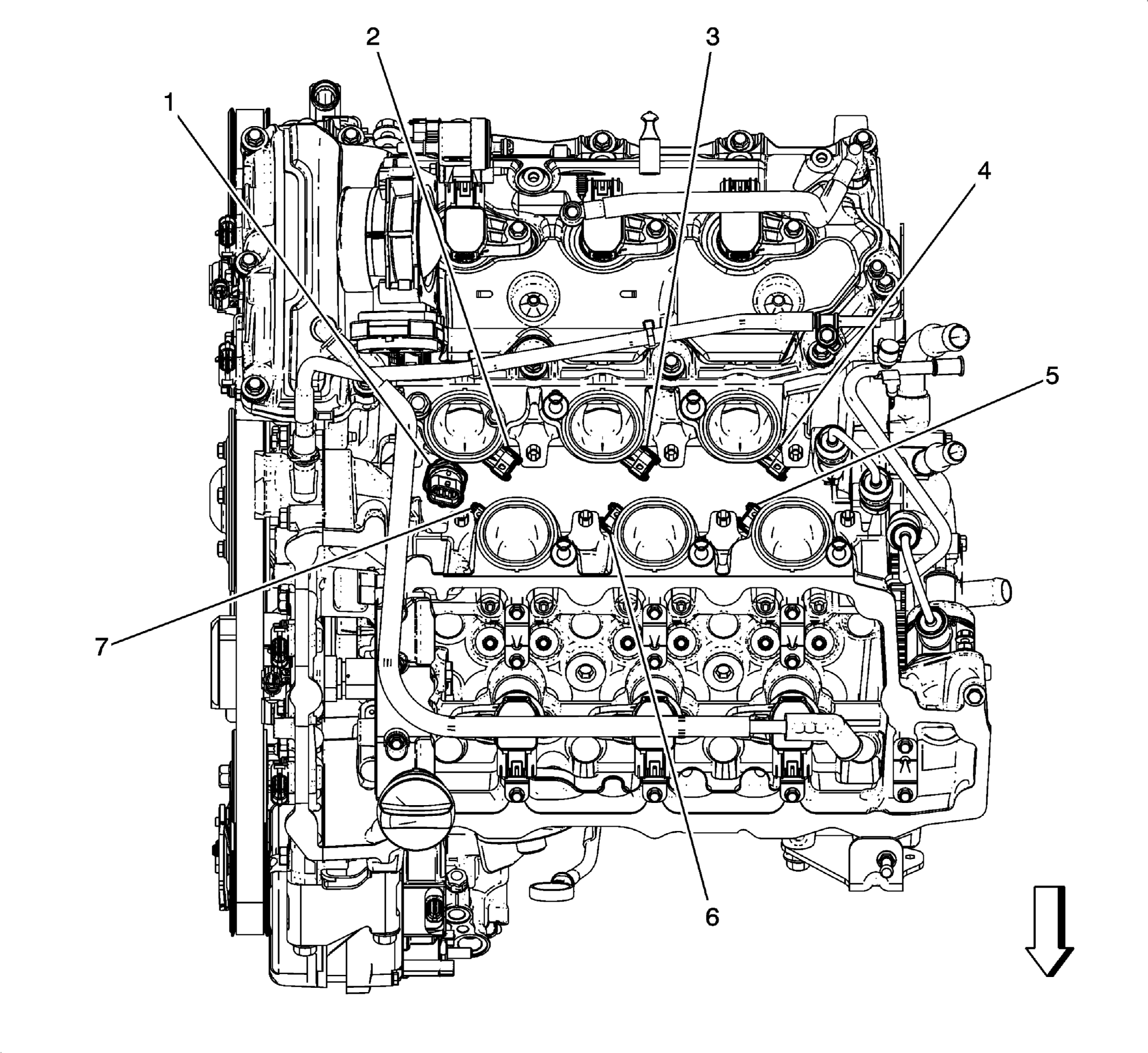

Fig 1: Top Engine Components (LF1 or LLT)
Courtesy of GENERAL MOTORS COMPANY
