Catalytic Converter Heat Shield Replacement

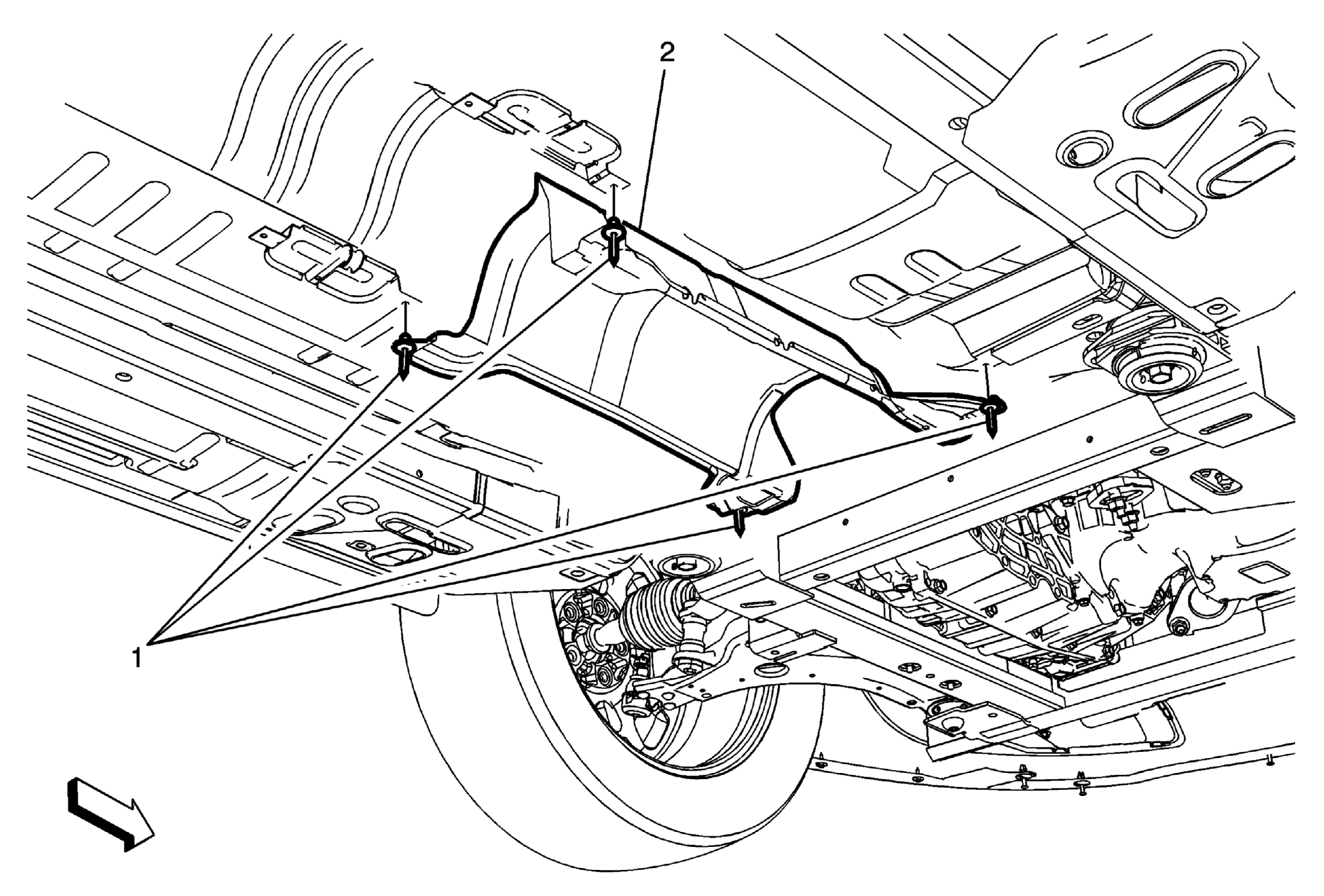

Fig 1: Catalytic Converter Heat Shield & Fasteners
GM2632512Courtesy of GENERAL MOTORS COMPANY
Catalytic Converter Heat Shield Replacement

Callout Component Name

Preliminary Procedures

  1. Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the exhaust muffler. Refer to Exhaust Muffler Replacement .
1 Catalytic Converter Heat Shield Fastener (Qty 4)
WARNING:

Refer to Hot Exhaust System Warning .
2 Catalytic Converter Heat Shield

Procedure

  1. Drill out the rivets securing the catalytic converter heat shield .
  2. Replace the catalytic converter heat shield and secure with #4 rivets.
