Chevrolet
›
2013
›
Impala LS
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
CAN Bus Serial Data
CAN Bus Serial Data

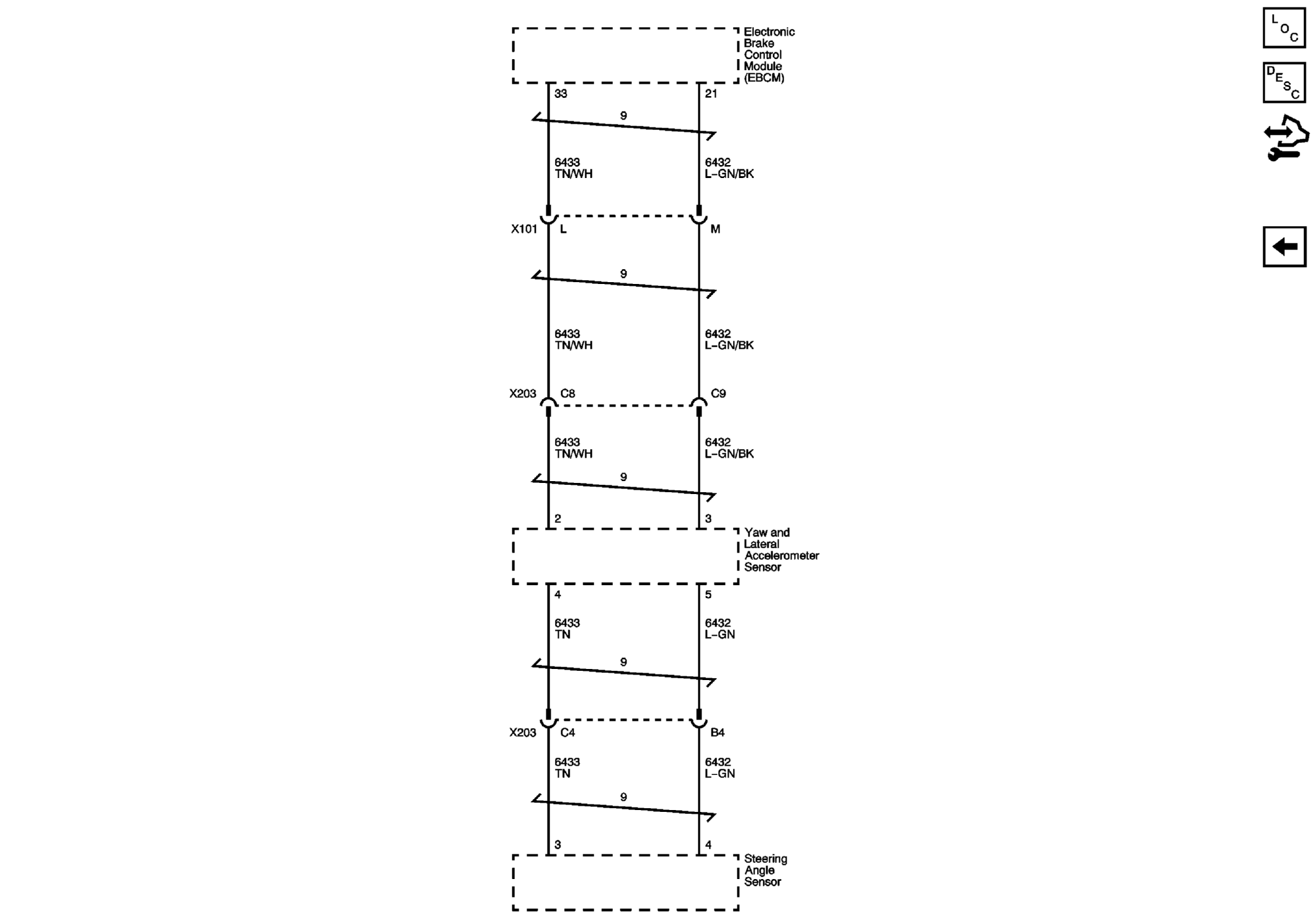

Fig 1: CAN Bus Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
