High Speed GMLAN Serial Data

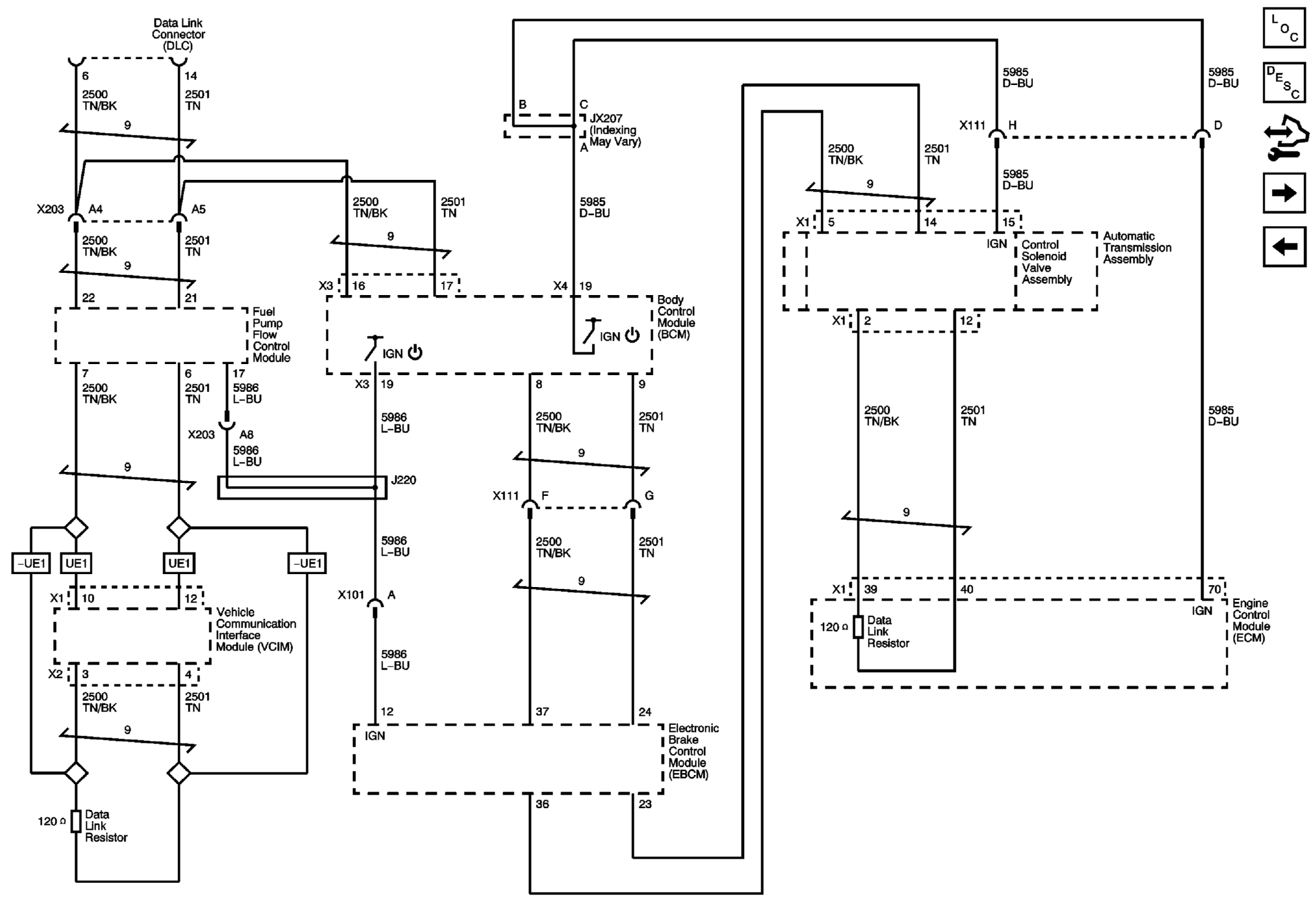

Fig 1: High Speed GMLAN Serial Data Wiring Schematic
GM2838997Courtesy of GENERAL MOTORS COMPANY
