Power, Ground, and Low Speed GMLAN Serial Data

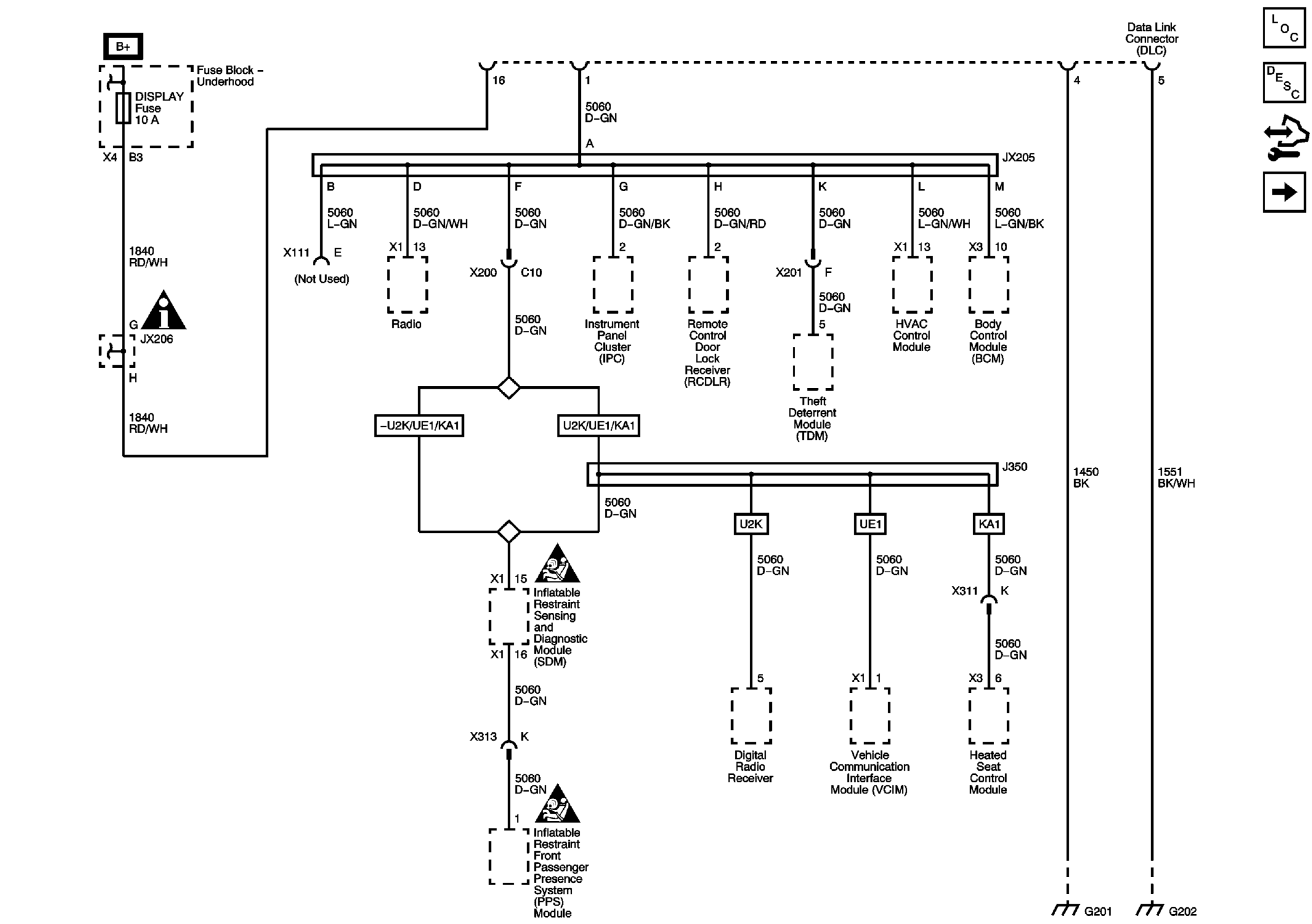

Fig 1: Power, Ground, and Low Speed GMLAN Serial Data Wiring Schematic
GM2838988Courtesy of GENERAL MOTORS COMPANY
