Inflatable Restraint Roof Rail Module Replacement - Left

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

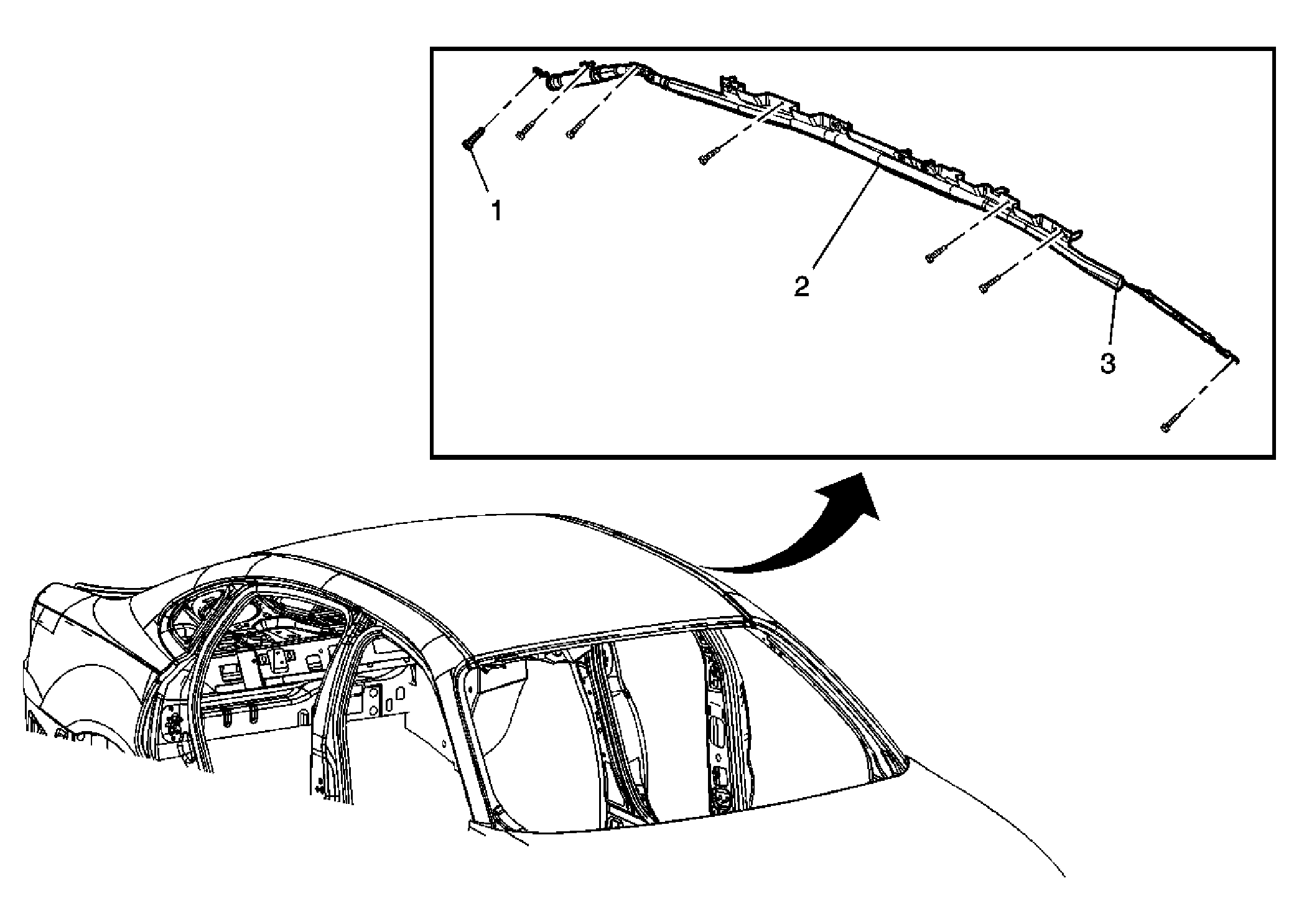

Fig 1: Inflatable Restraint Roof Rail Module - Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Preliminary Procedures Disable the supplementary inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling Zone 6 . Remove the windshield garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar . Remove the center pillars upper trim panels. Refer to Trim Panel Replacement - Upper Center Pillar . Remove the upper rear trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower . Remove the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf . Remove the headliner assembly. Refer to Headliner Replacement .
1	Bolts, Mounting Inflatable Roof Rail Module (Qty: 7) Tighten: Tighten 10 N.m (89 lb in)
2	Connector, Electrical Inflatable Restraint Module
3	Module, Inflatable Restraint Roof Rail Tip: If the air bag had a DTC, and must be returned for warranty, refer to Inflator Module Handling and Scrapping .
