Control Valve Body Assembly

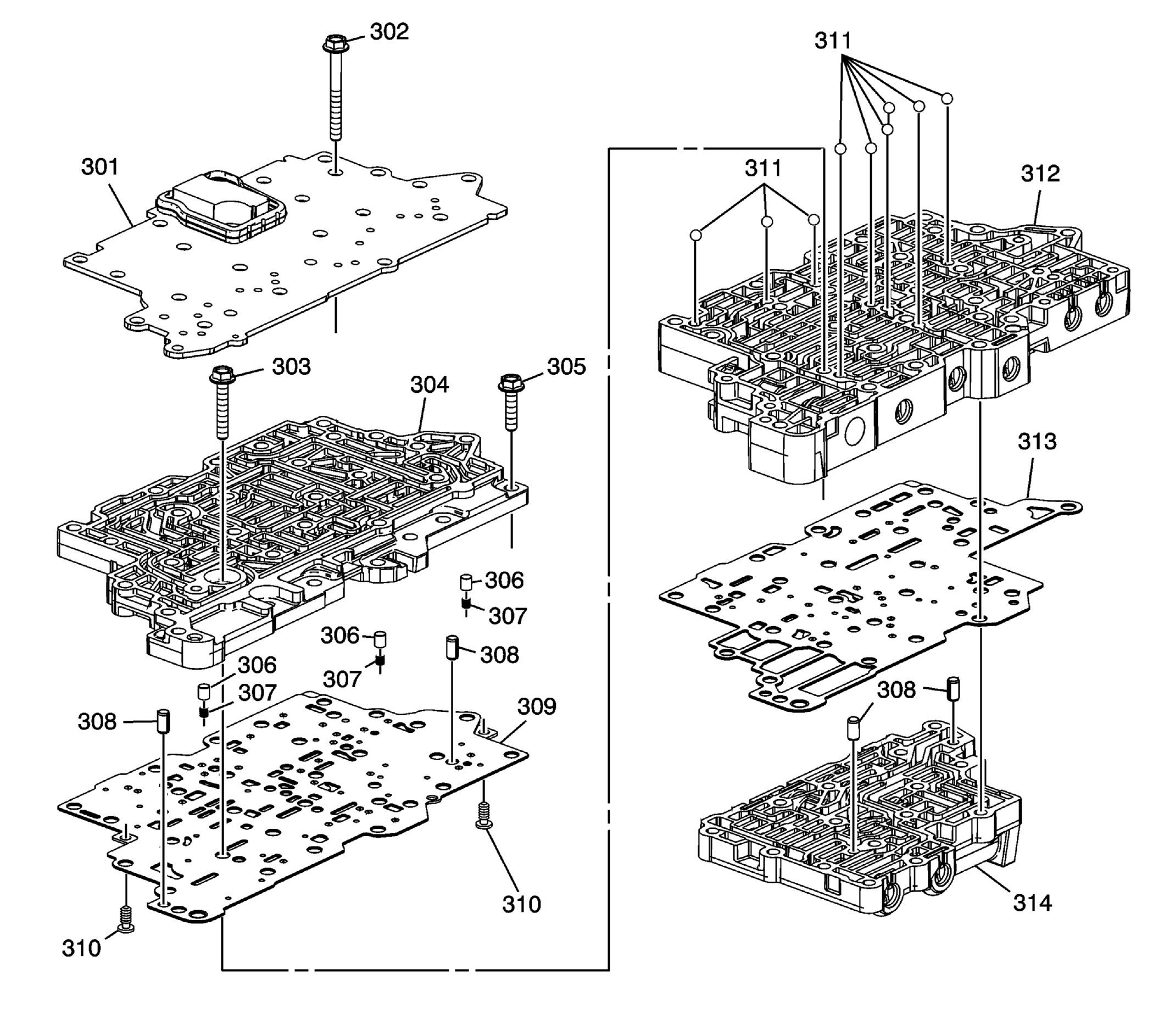

Fig 1: Control Valve Body Assembly Components
GM2871887Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
301 Control Valve Channel Upper Plate Assembly
302 Control Valve Body Bolt
303 Control Valve Body Bolt
304 Control Valve Channel Plate
305 Control Valve Body Bolt
306 Actuator Feed Accumulator Piston
307 Actuator Feed Accumulator Spring
308 Control Valve Body Locator Pin
309 Control Valve Upper Body Spacer Plate Assembly
310 Control Valve Body Spacer Plate Retainer
311 Control Valve Body Ball Check Valve
312 Control Valve Upper Body Assembly
313 Control Valve Lower Body Spacer Plate Assembly
314 Control Valve Lower Body
