Battery Positive Fuse Block Cable Replacement

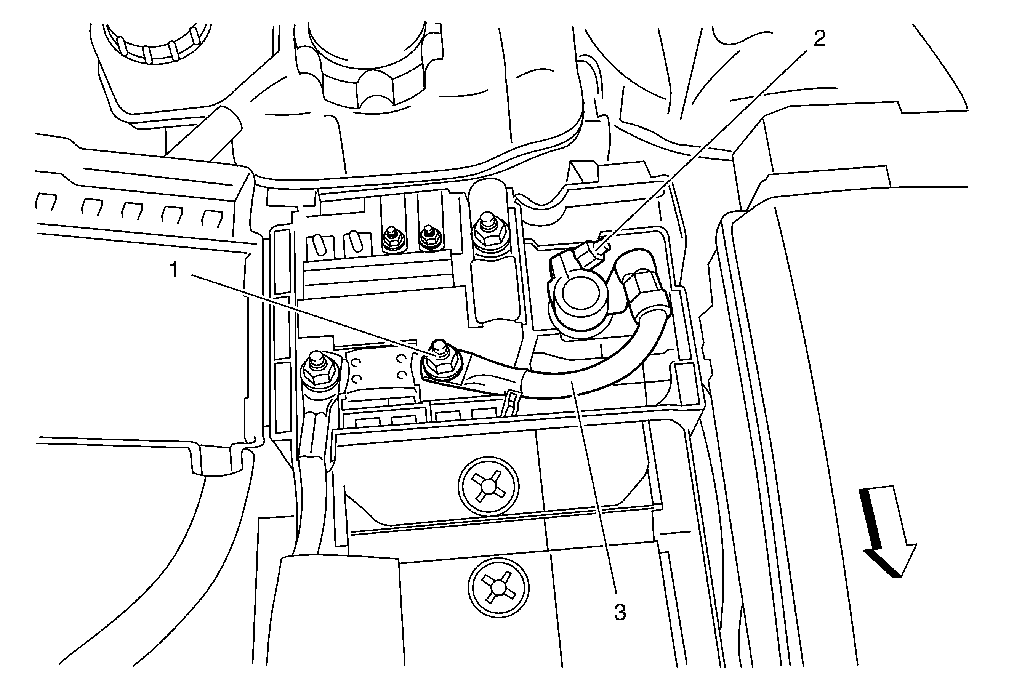

Fig 1: Battery Positive Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Open the battery fuse block cover.
1	Battery Positive Cable Fastener CAUTION: Refer to Fastener Caution . Tighten 12 (106 lb in)
2	Battery Positive Cable Fastener Tighten 4.5 (40 lb in)
3	Battery Positive Cable
