Body Control System Wiring Schematics
›
Power, Ground, and Data Communication References Wiring Schematics
Power, Ground, and Data Communication References Wiring Schematics

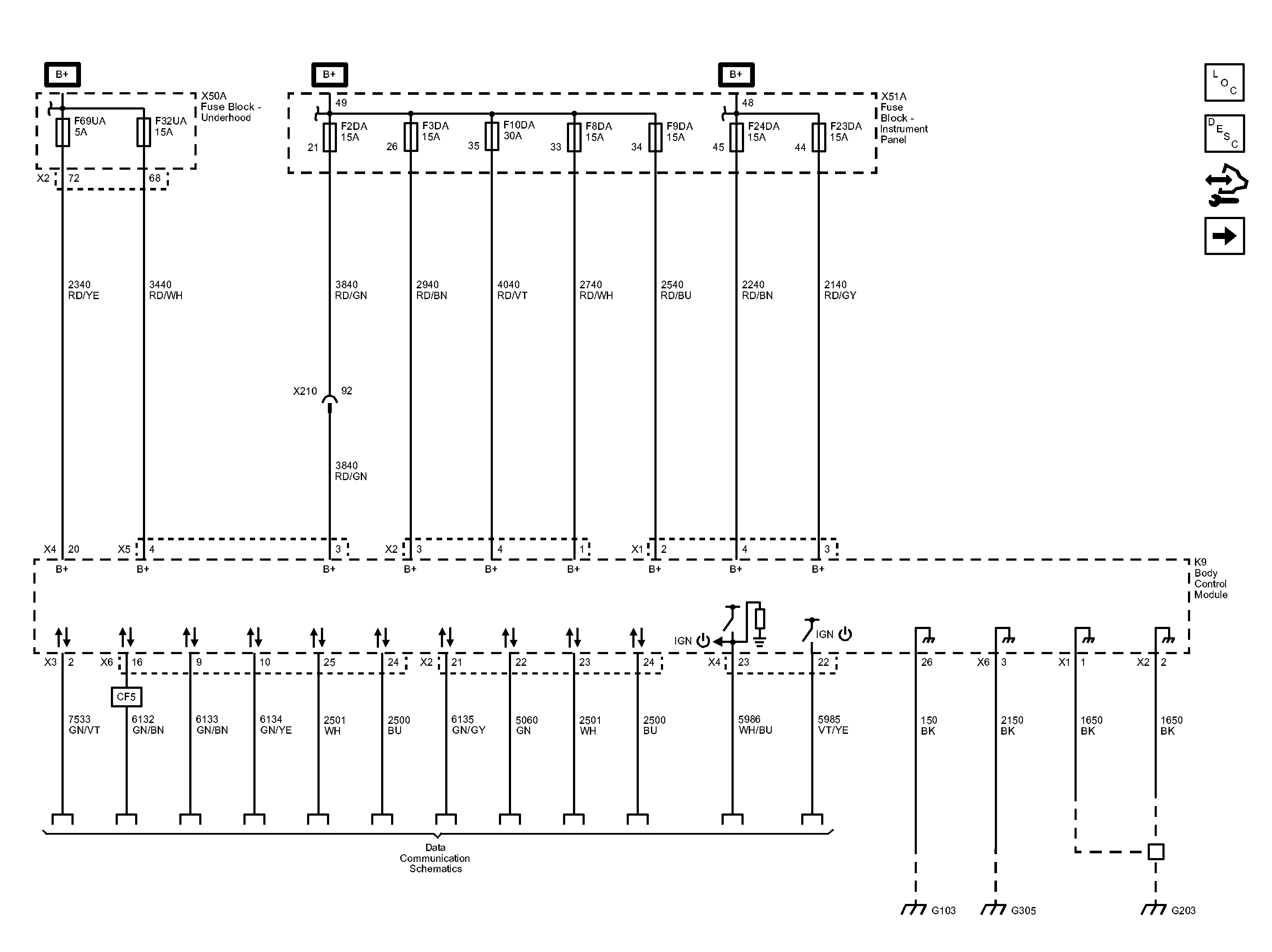

Fig 1: Power, Ground, and Data Communication References Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
