Behind the Center of the Instrument Panel

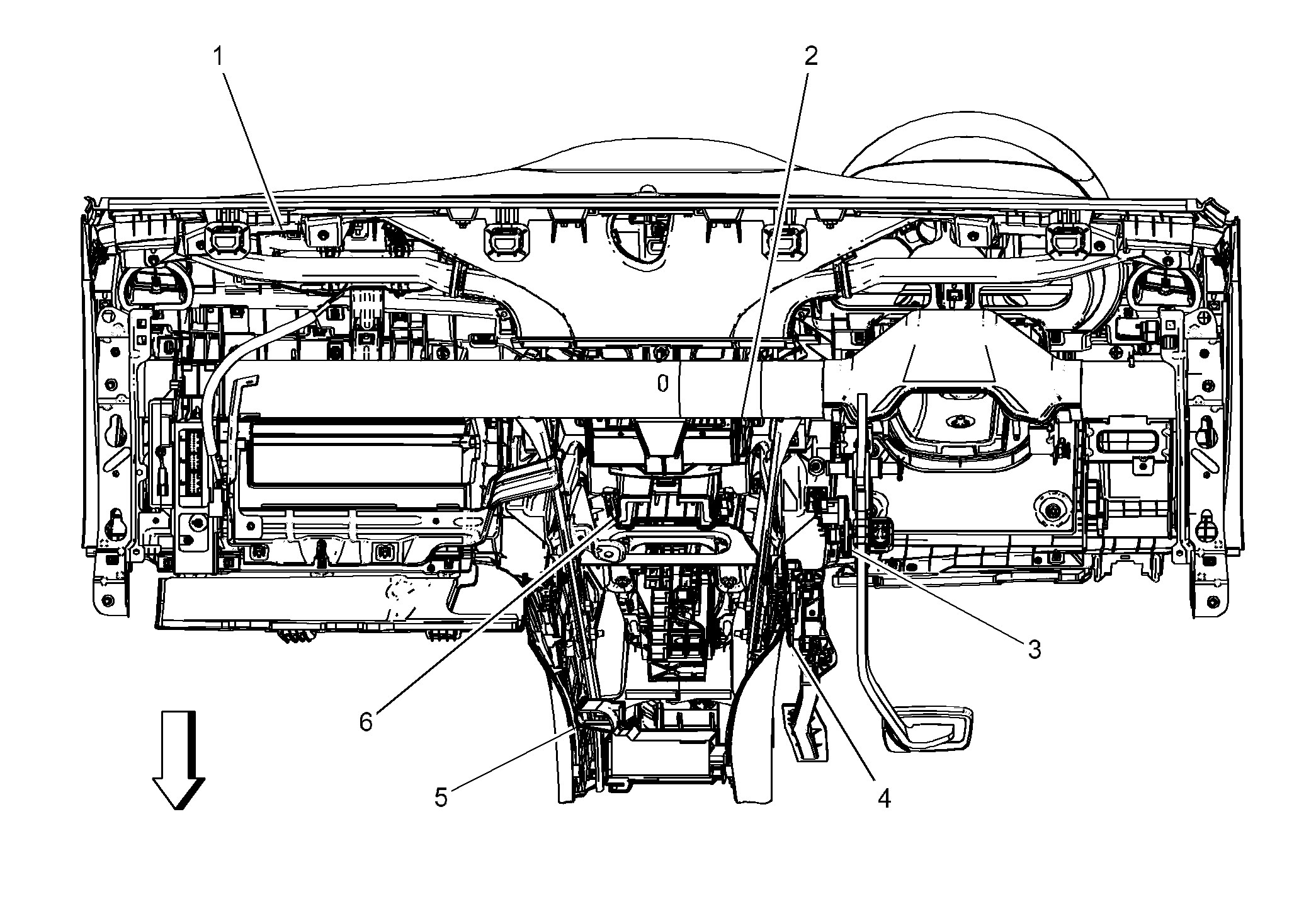

Fig 1: Behind the Center of the Instrument Panel Components (LHD)

Courtesy of GENERAL MOTORS COMPANY

Items
1:  F101 Passenger Instrument Panel Air Bag () F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2F101 Passenger Instrument Panel Air Bag X3
2:  A11 Radio () A11 Radio X1A11 Radio X2 (UEW)
3:  B22 Brake Pedal Position Sensor () B22 Brake Pedal Position Sensor
4:  B107 Accelerator Pedal Position Sensor () B107 Accelerator Pedal Position Sensor
5:  K9 Body Control Module () K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
6:  T11 Multimedia Player Interface Module (KTA) T11 Multimedia Player Interface Module X1 (KTA)
