Blower Motor Control Module Replacement

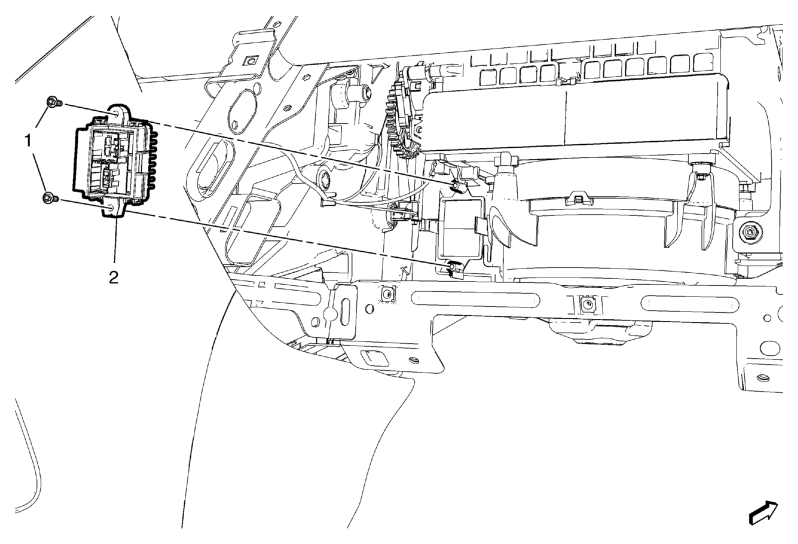

Fig 1: Blower Motor Control Module (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the floor front air outlet duct - right side. Refer to Floor Front Air Outlet Duct Replacement - Right Side .
1	Blower Motor Control Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Blower Motor Control Module Procedure Disconnect electrical connector.
