Front Seat Belt Buckle Replacement
Front Seat Belt Buckle Replacement

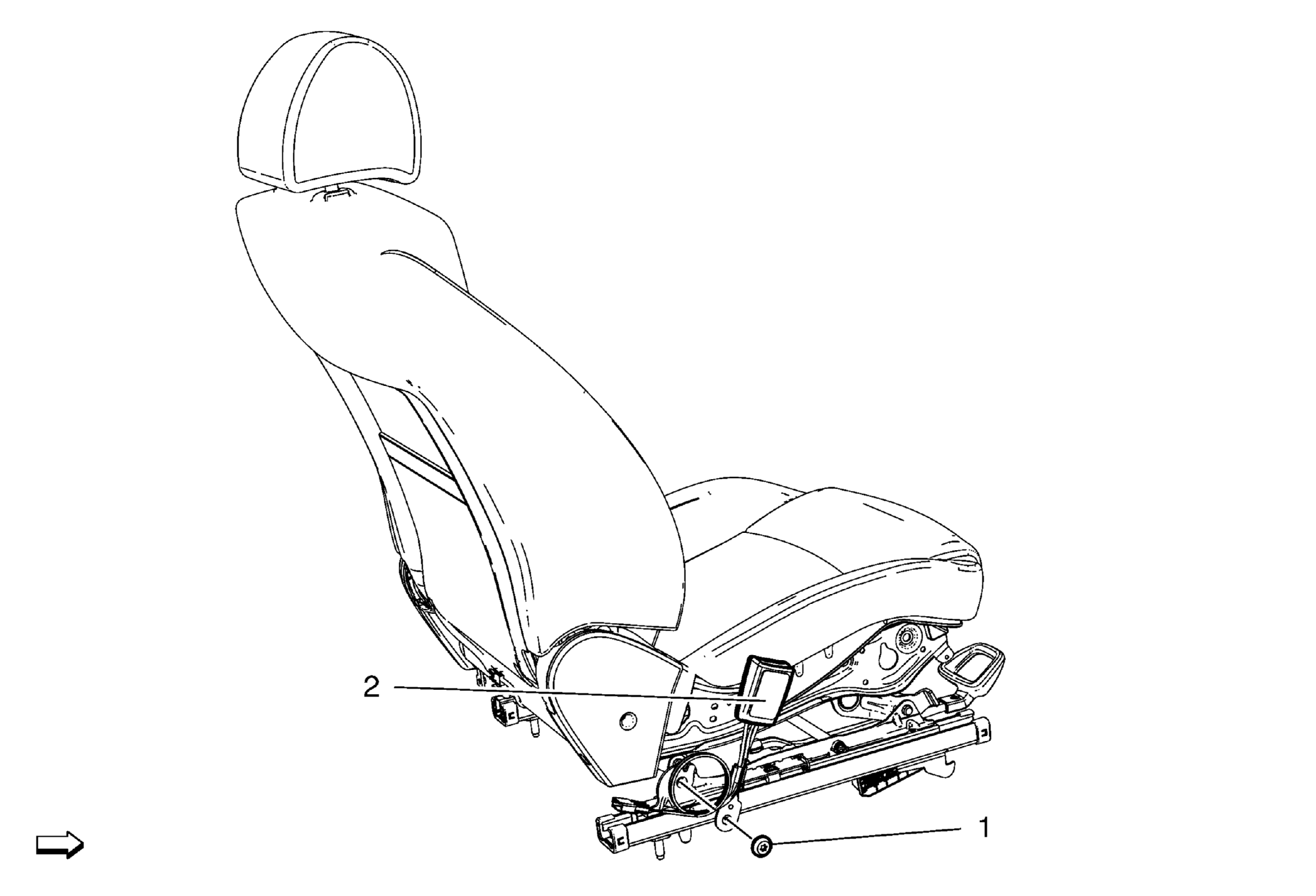

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation . |
|
| 1 | Front Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Front Seat Belt Buckle |
