Installation Procedure

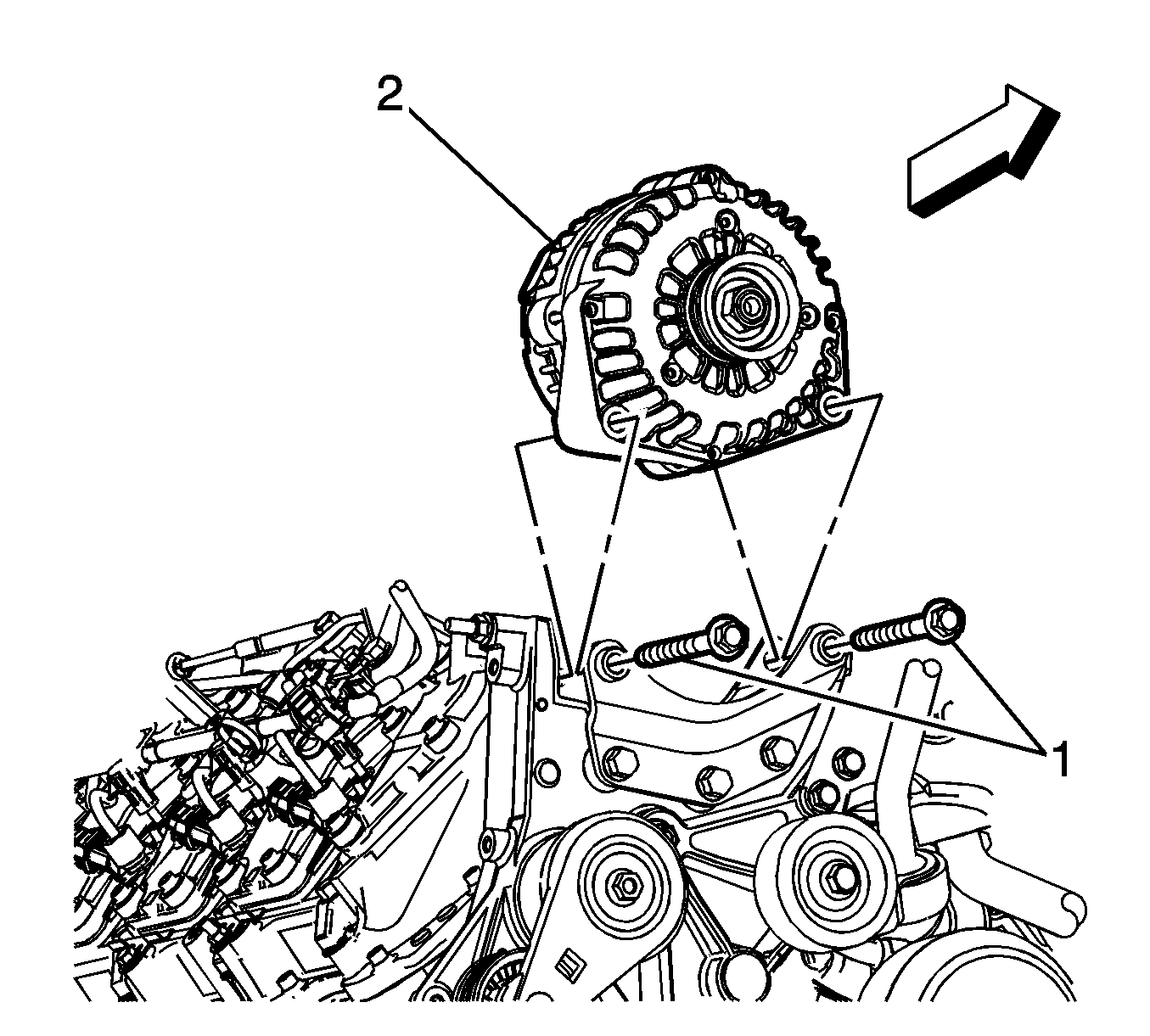

    Fig 1: View Of Generator
    GM2382170Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the generator (2) to the generator bracket and tighten the generator mounting bolts (1) to 50 N.m (37 lb ft)

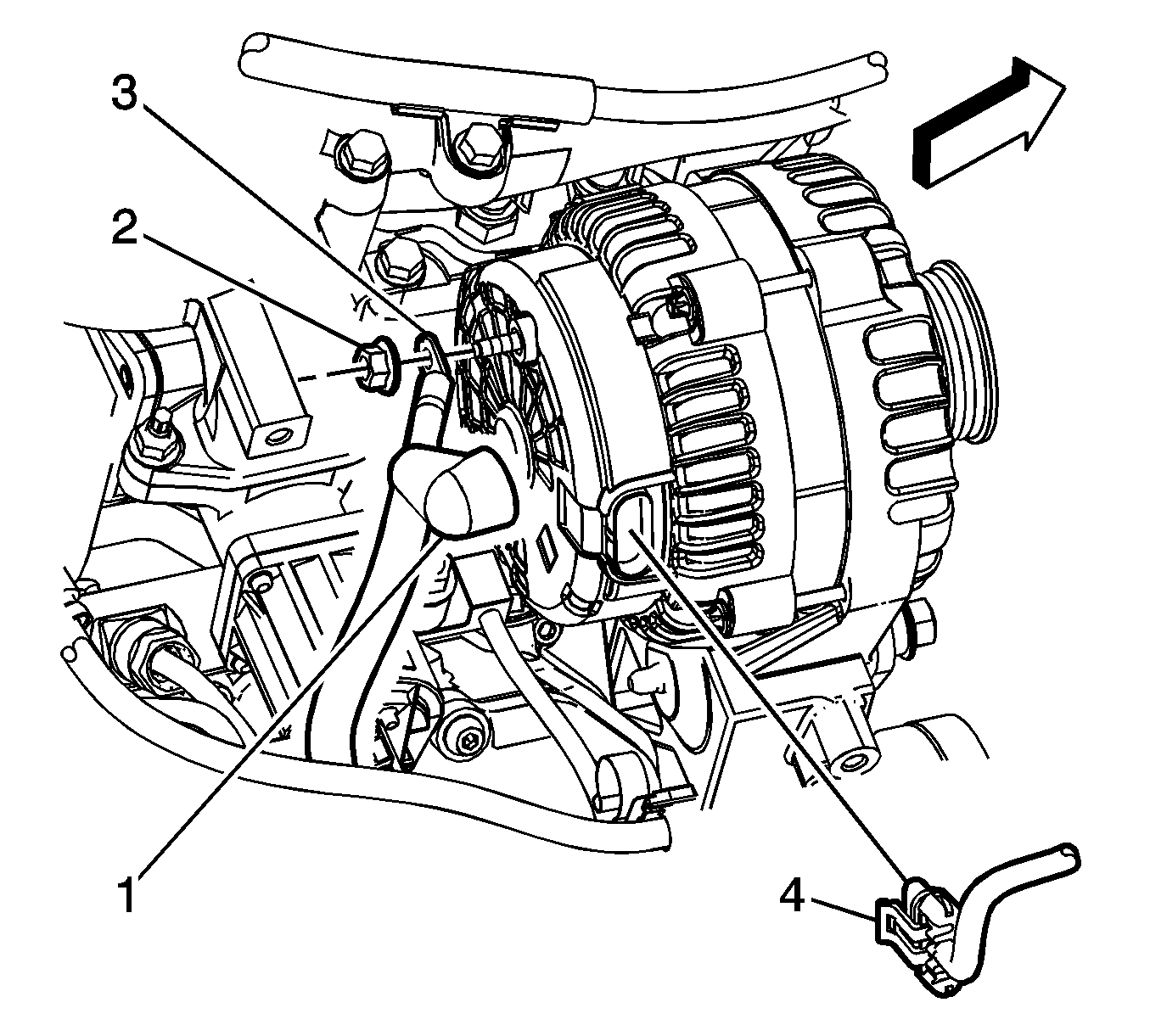

    2. Fig 2: View Of Generator Positive Terminal & Protective Boot
    GM2382168Courtesy of GENERAL MOTORS COMPANY
  2. Connect the generator electrical connector (4).
  3. Install the battery positive B+ cable terminal (3) to the generator stud and tighten to

    10 N.m (89 lb in)

  4. Slide the protective boot (1) back onto the terminal stud.
  5. Install the drive belt. Refer to Drive Belt Replacement .
  6. Install the upper fan shroud. Refer to Engine Coolant Fan Upper Shroud Replacement (Diesel) .
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (TP2) , Battery Negative Cable Disconnection and Connection (Single Battery)
