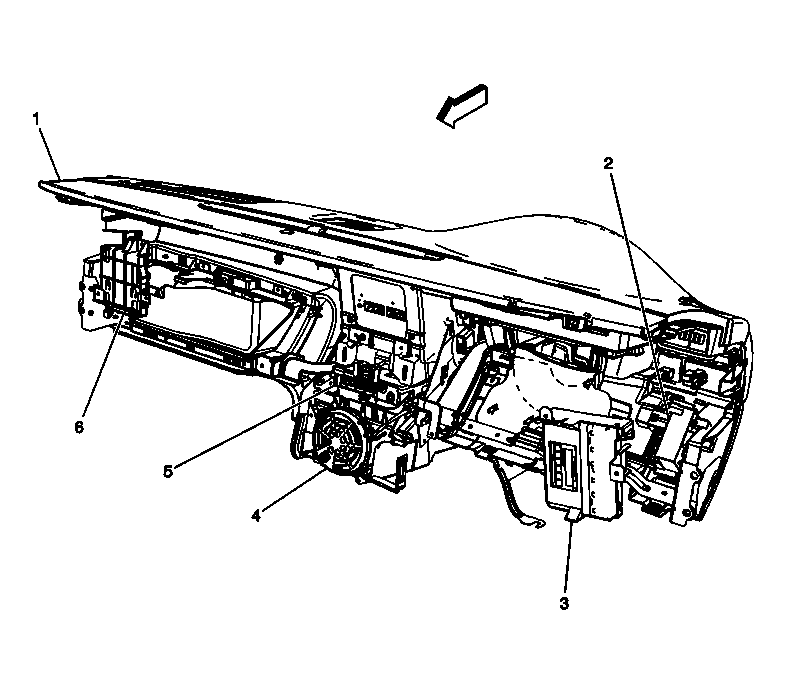

Behind the I/P Components
Behind the I/P Components
| Component Name |
Callout |
| I/P Trim |
1 |
| Fuse Block - I/P |
2 |
| Body Control Module (BCM) |
3 |
| Speaker - Subwoofer (UQA) |
4 |
| Vehicle Communication Interface Module (VCIM) (UE1 with YE9) |
5 |
| Digital Radio Receiver (U2K) |
6 |
Courtesy of GENERAL MOTORS COMPANY
