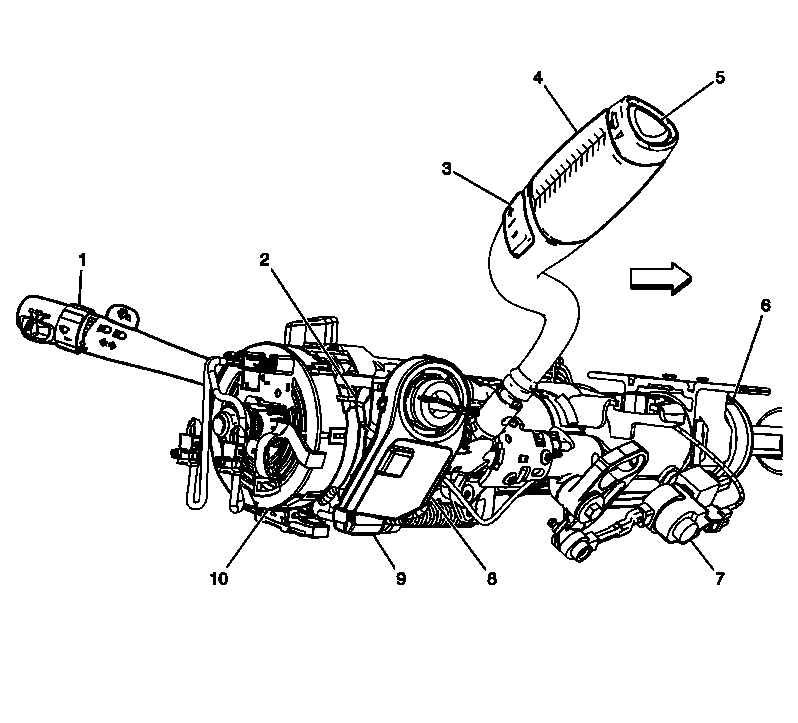

Steering Column Components
Steering Column Components
| Component Name | Callout |
|---|---|
| Turn/Signal Multifunction Switch | 1 |
| Ignition Lock Cylinder | 2 |
| Driver Shift Request Switch (MYC/MYD/MW7) | 3 |
| Automatic Transmission Shift Lever (M30/MYC/MYD/MW7) | 4 |
| Tow/Haul Switch (M30/MYC/MYD/MW7) | 5 |
| Steering Angle Sensor (JL4) | 6 |
| Automatic Transmission Shift Lock Control Solenoid | 7 |
| Theft Deterrent Module (TDM) | 8 |
| Ignition Switch | 9 |
| Inflatable Restraint Steering Wheel Module Coil | 10 |
