Exhaust Heat Shield Replacement
Courtesy of GENERAL MOTORS COMPANY Exhaust Heat Shield Replacement

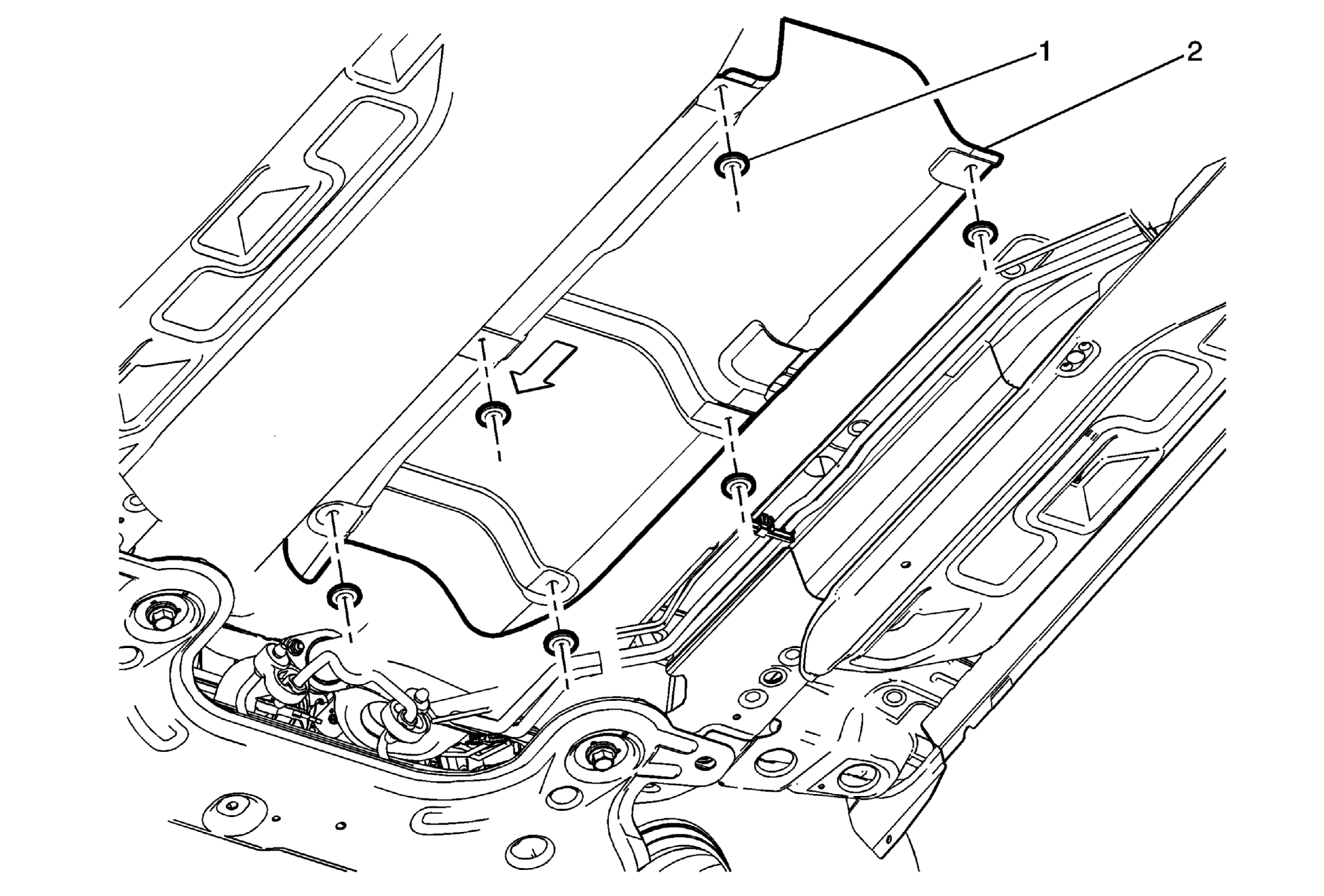

| Callout |
Component Name |
Preliminary Procedure
Disconnect the exhaust system hangers and allow the exhaust system to rest on the rear axle. |
| 1 |
Exhaust Heat Shield Fastener (Qty: 6) |
| 2 |
Exhaust Heat Shield |
