Chevrolet
›
2013
›
Sonic RS, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Power, Ground, Data Communications and Subsystem References (1 of 5)
Power, Ground, Data Communications and Subsystem References (1 of 5)

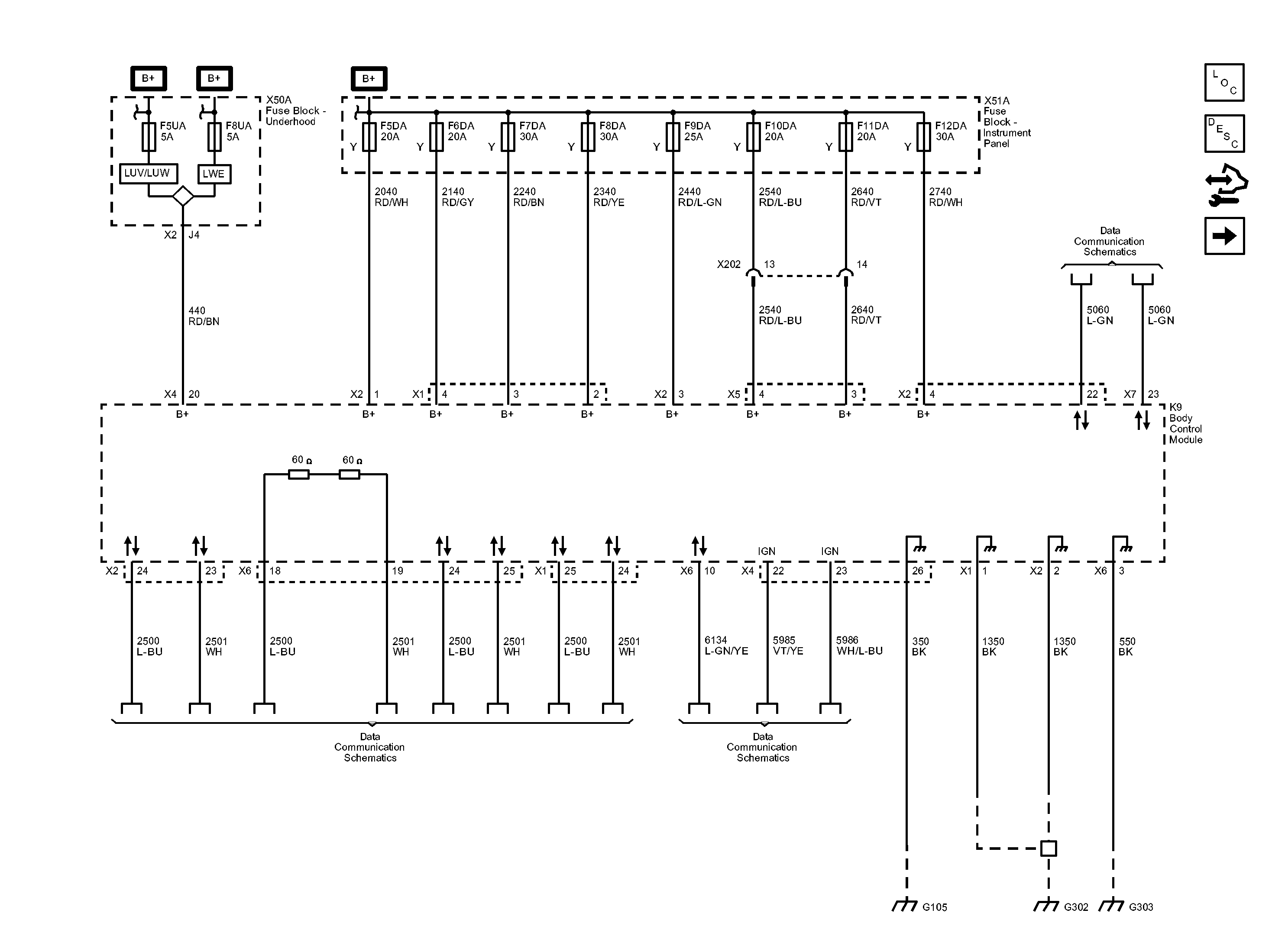

Fig 1: Power, Ground, Data Communications and Subsystem References Wiring Schematic (1 of 5)
