Sonic RS, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
High Speed GMLAN Bus 2
High Speed GMLAN Bus 2

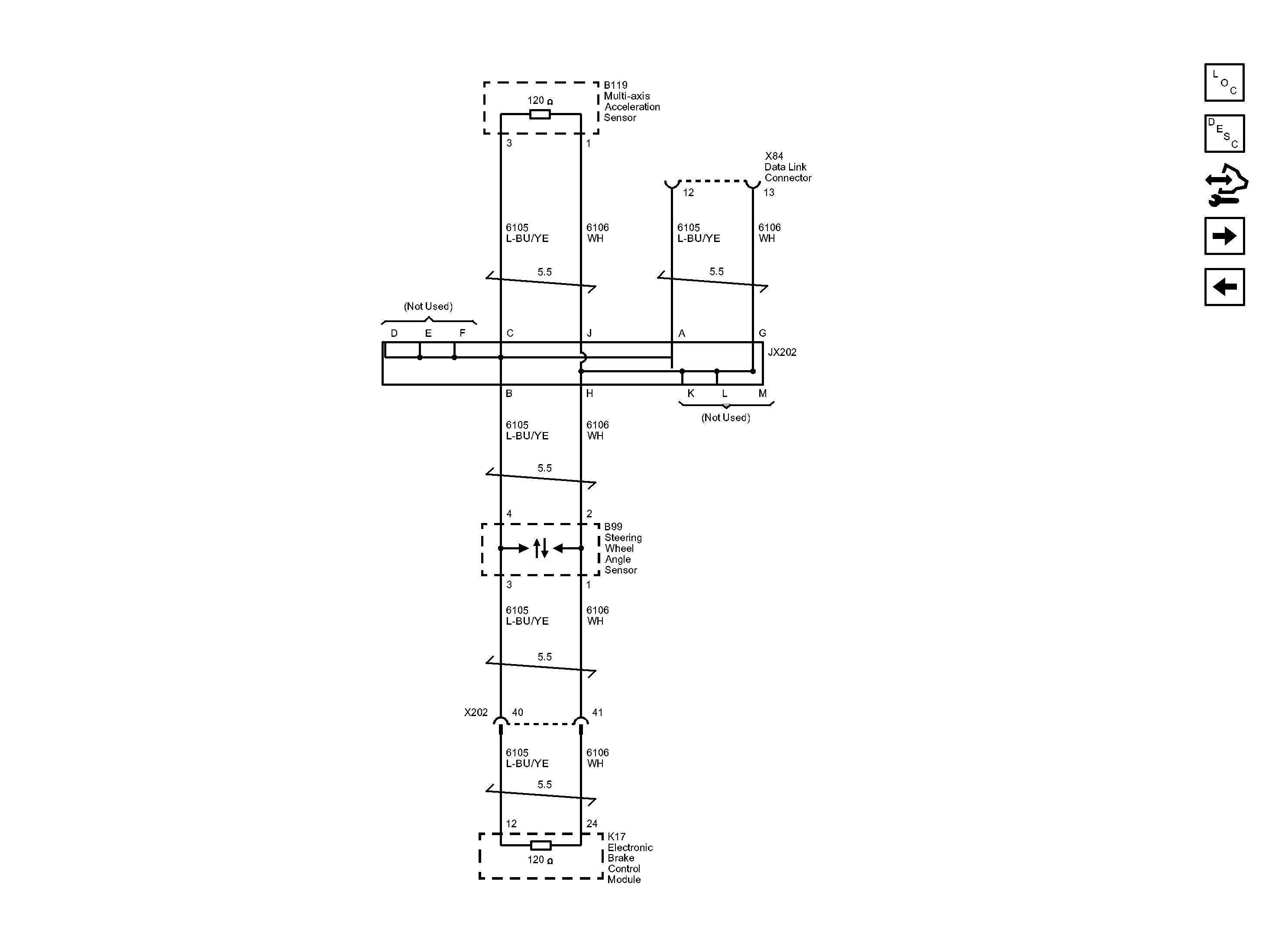

Fig 1: High Speed GMLAN Bus 2 Wiring Schematic
