Object Detection Wiring Schematics: UD7

WARNING: This page is about a different car, the 2012 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

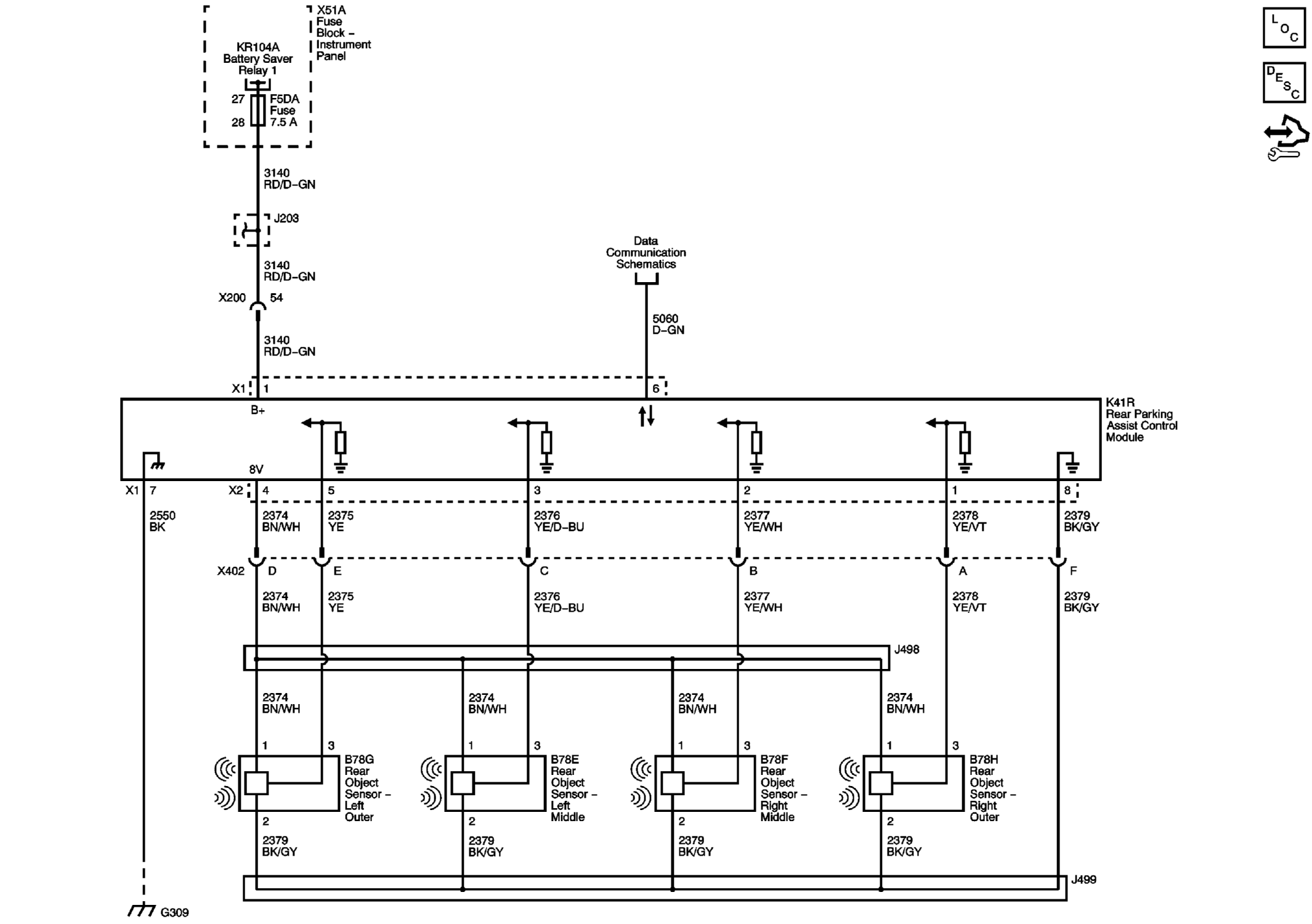

Fig 1: Object Detection (UD7) Wiring Schematic

Courtesy of GENERAL MOTORS COMPANY
