Battery Negative Cable Disconnection and Connection

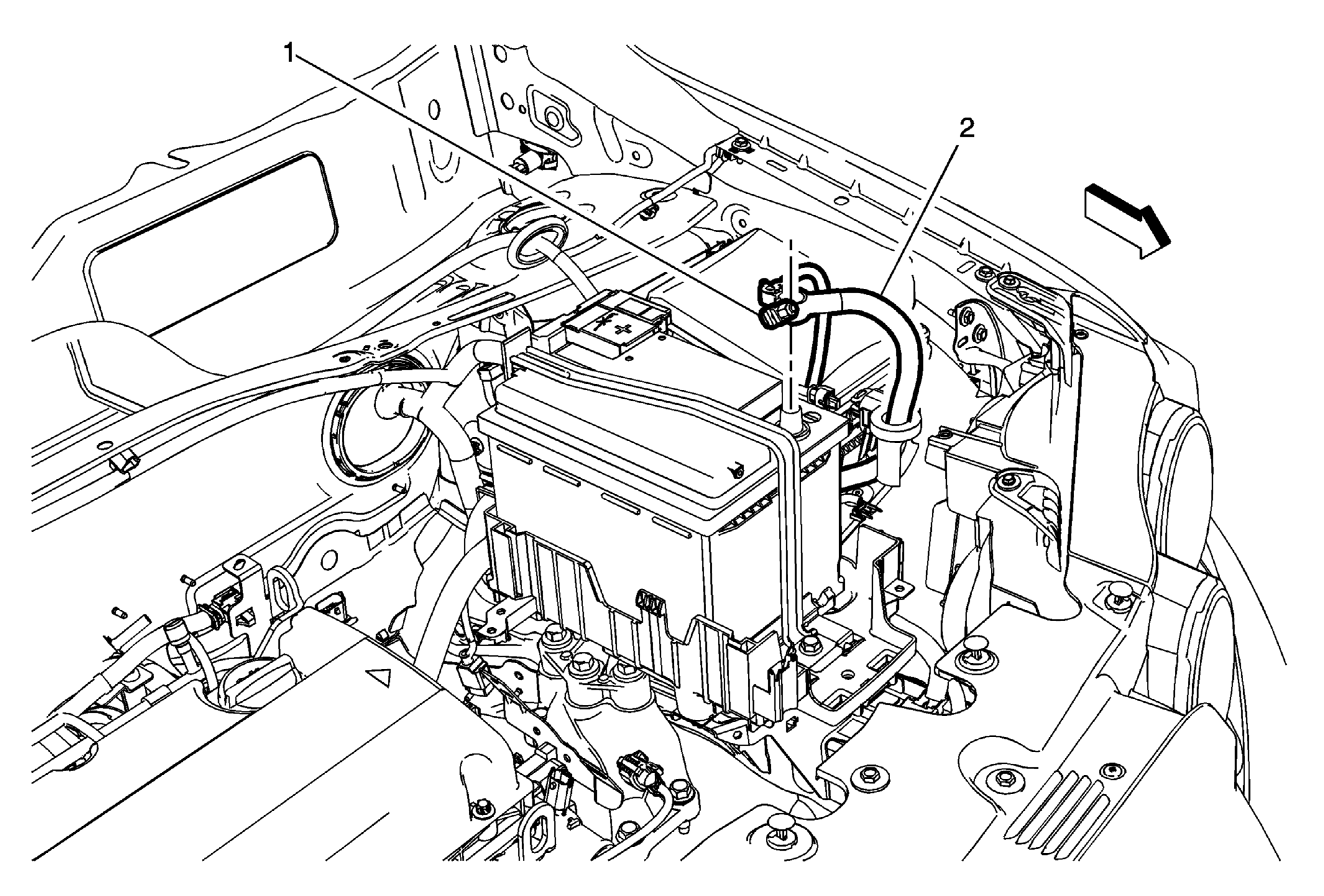

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn on the radio and record all of the radio pre-set stations. Ensure that all lamps and accessories are turned off. Turn the ignition OFF and remove the ignition key.
1	Battery Negative Cable Fastener WARNING: Refer to Battery Disconnect Warning . CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Battery Negative Cable Procedure Disconnect the battery negative cable from the battery. After connecting the battery negative cable, insert the ignition key and turn the ignition to the ON position. Program the volatile memory. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Battery Negative Cable Fastener

WARNING:

CAUTION:

Tighten
4.5 N.m (40 lb in)

Battery Negative Cable

Procedure

Disconnect the battery negative cable from the battery.
After connecting the battery negative cable, insert the ignition key and turn the ignition to the ON position.
Program the volatile memory. Refer to Control Module References .
