Front Side Door Lock Replacement

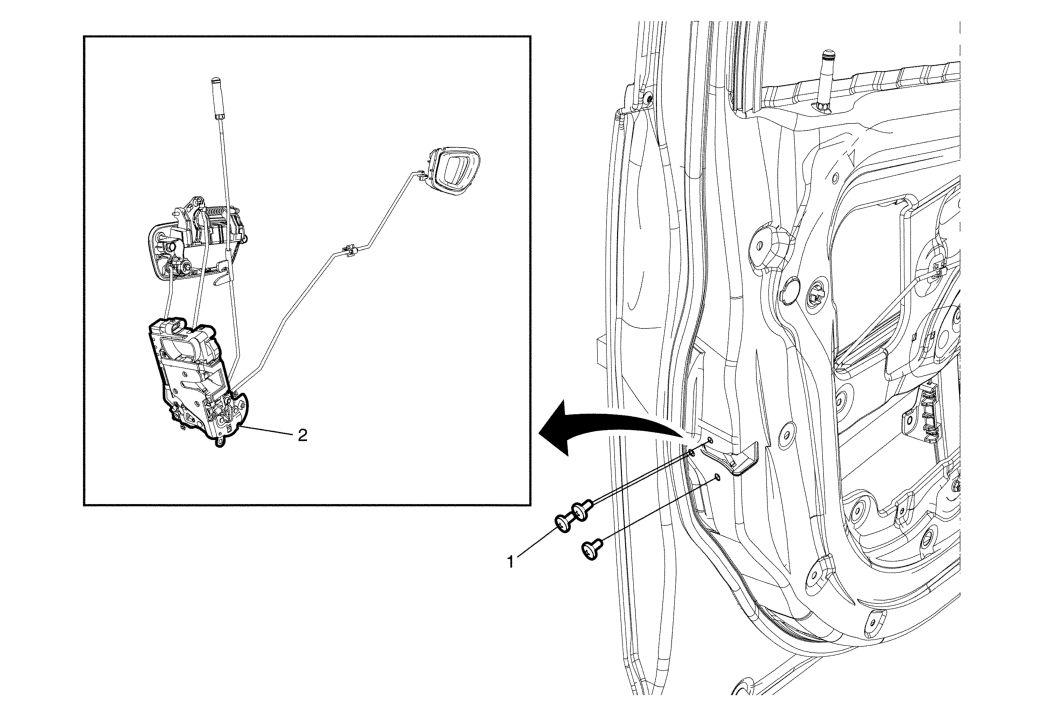

Fig 1: Front Side Door Lock

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Disconnect the front side door outside handle rod, inside handle rod and lock rod.
1	Front Side Door Lock Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Front Side Door Lock Assembly Procedure Disconnect the door lock electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector.
Disconnect the front side door outside handle rod, inside handle rod and lock rod.

Front Side Door Lock Screw (Qty: 3)

CAUTION:

Tighten
8.5 N.m (75 lb in)

Front Side Door Lock Assembly
Procedure
Disconnect the door lock electrical connector.
