Liftgate Lock Actuator Replacement

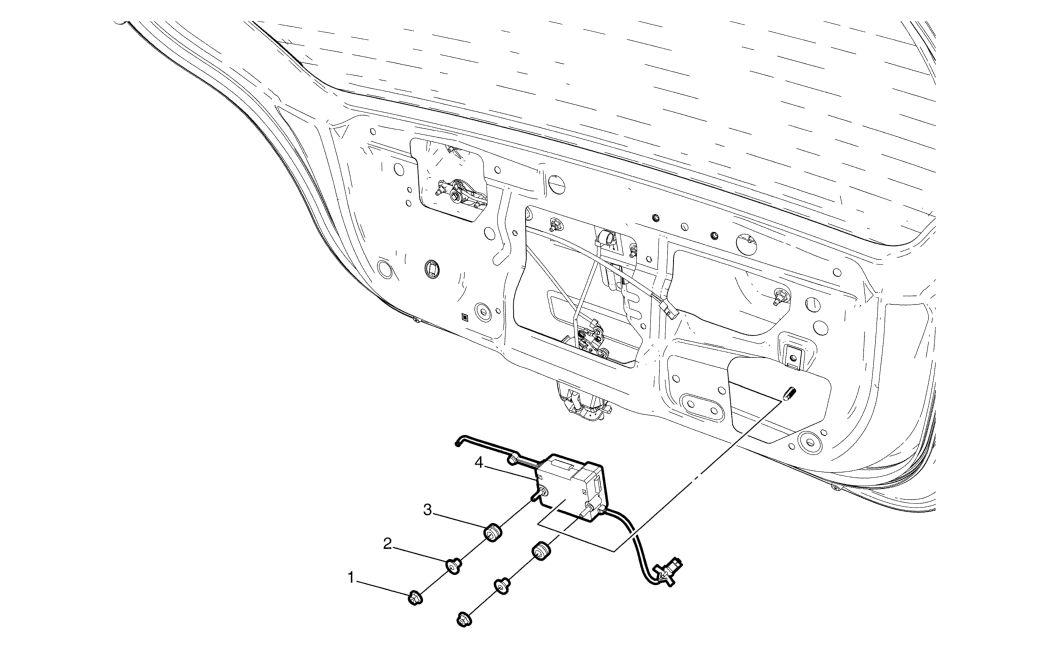

Fig 1: Liftgate Lock Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
1	Liftgate Lock Actuator Nut (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Liftgate Lock Actuator Rubber Bush (Qty: 2)
3	Liftgate Lock Actuator Plastic Bush (Qty: 2)
4	Liftgate Lock Actuator Procedure Disconnect the liftgate lock actuator electrical connector. Release the liftgate lock actuator rod from the latch.
