Installation Procedure

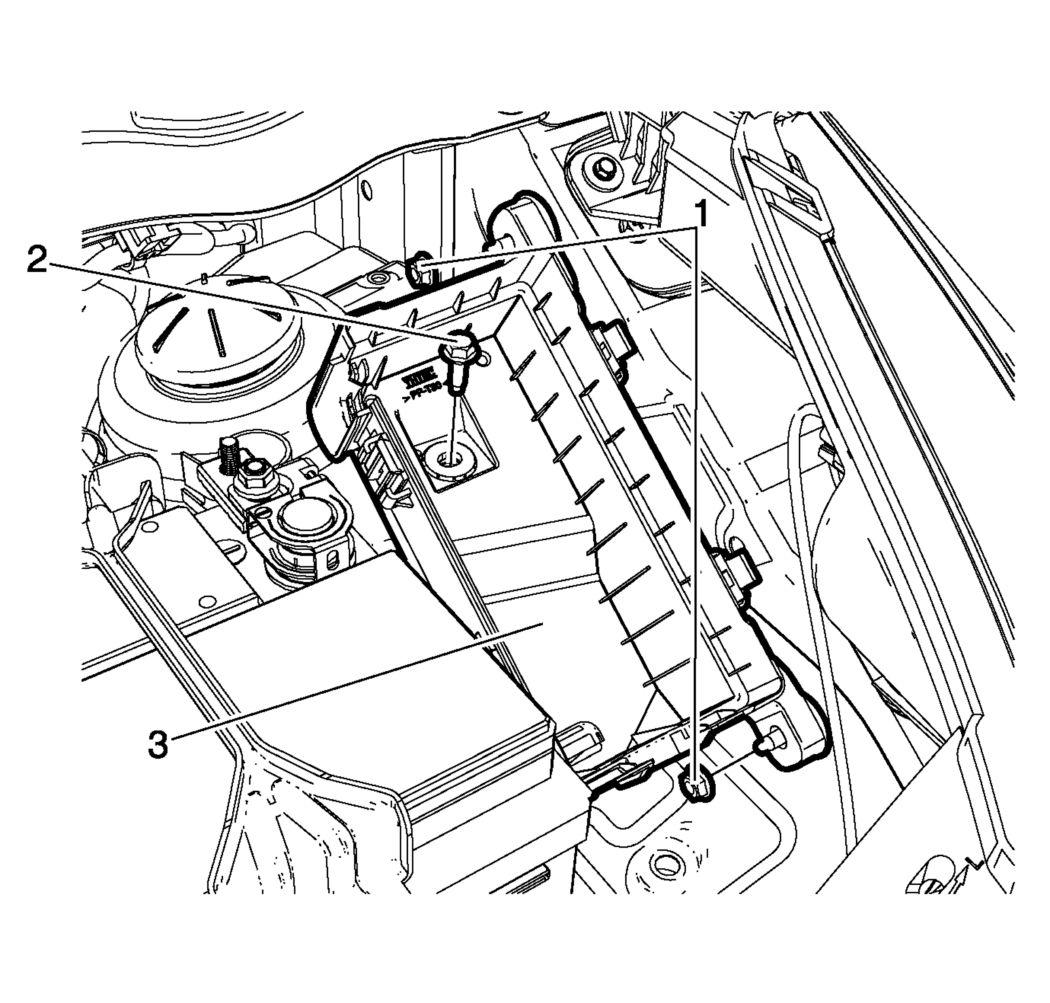

    Fig 1: Fuse Block Housing Fasteners
    GM2327655Courtesy of GENERAL MOTORS COMPANY
  1. Install fuse block housing.
    2. CAUTION:

    Refer to Fastener Caution .

  3. Install the fuse block housing fasteners (1, 2) and tighten to 7 (62 lb in).

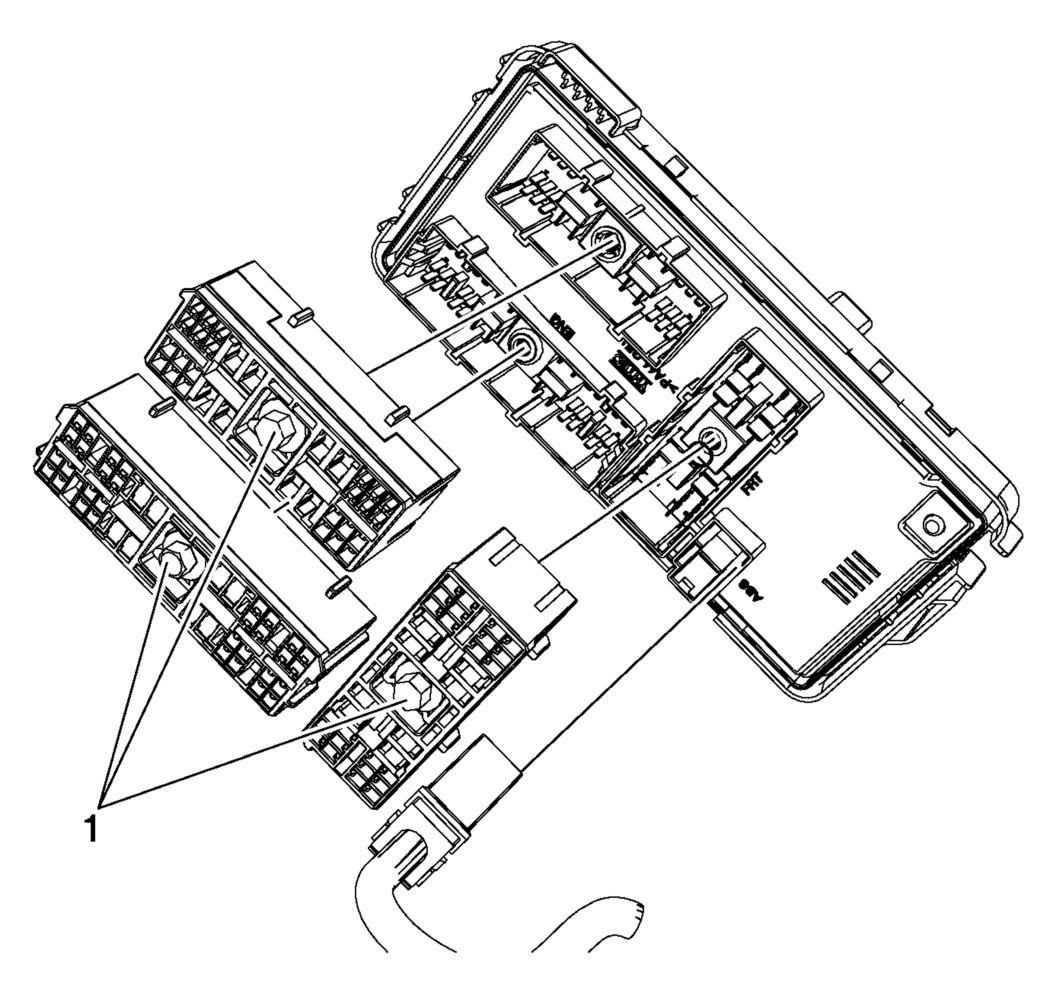

    4. Fig 2: Fuse Plate And Bolts
    GM2327656Courtesy of GENERAL MOTORS COMPANY
  4. Install wiring harness and tighten the bolts (1) to 6 (53 lb in).

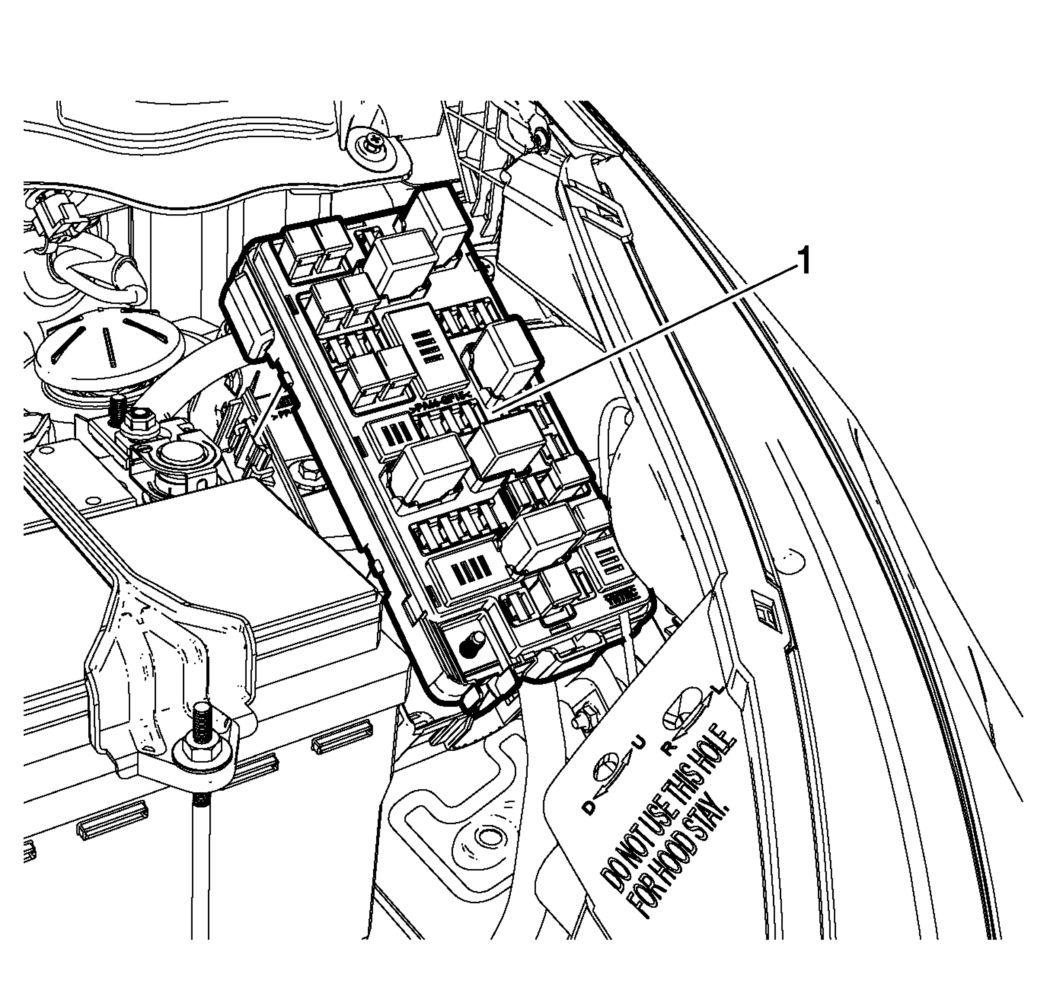

    5. Fig 3: Fuse Plate
    GM2327658Courtesy of GENERAL MOTORS COMPANY
  5. Install fuse plate (1) to the fuse block housing.

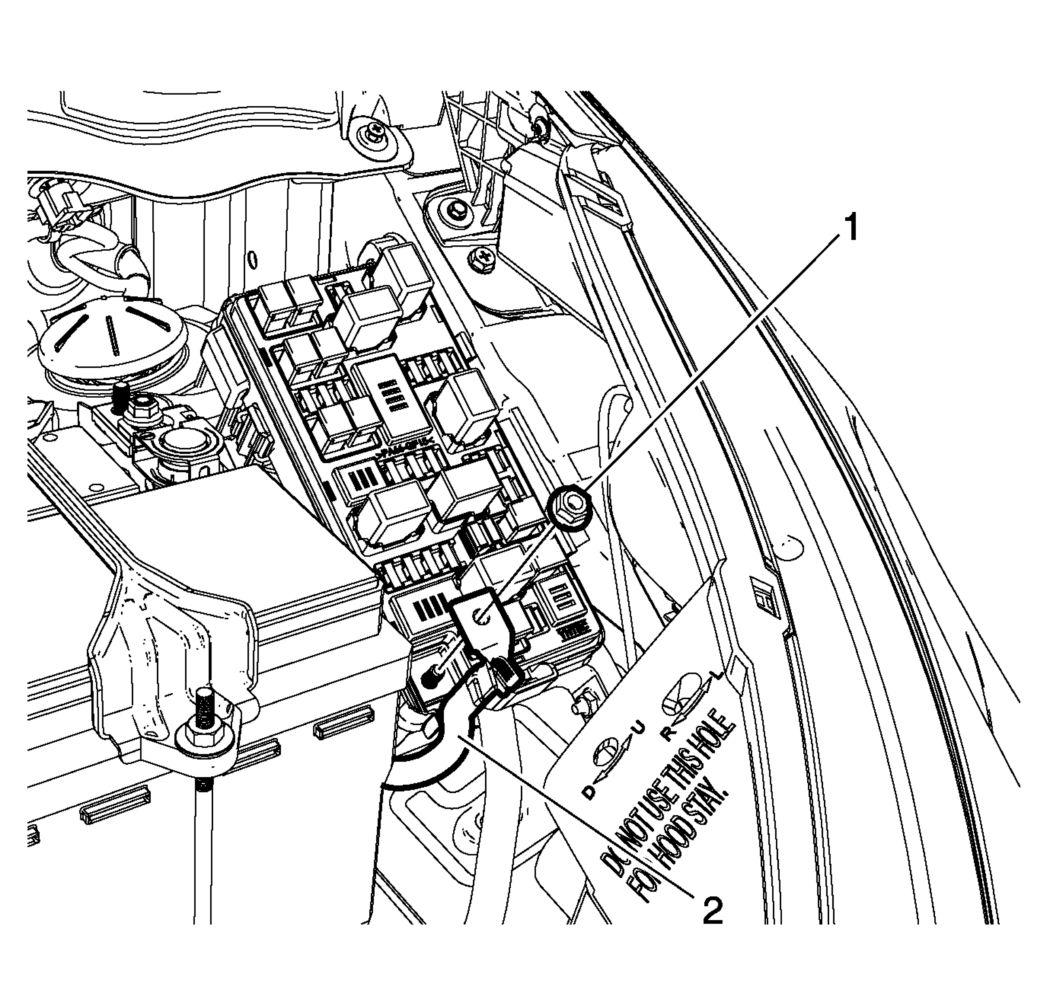

    6. Fig 4: Positive Battery Cable Nut
    GM2327660Courtesy of GENERAL MOTORS COMPANY
  6. Install the positive battery cable nut (1) and the positive battery cable (2) and tighten to 10 (89 lb in).
  7. Close fuse block.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
