Installation Procedure

Turn used adjuster bolt CCW counting turns until used pulley bottoms out. Turn new adjuster bolt CCW until new pulley bottoms out. Turn new adjuster bolt CW the same number of turns as counted on old adjuster bolt.

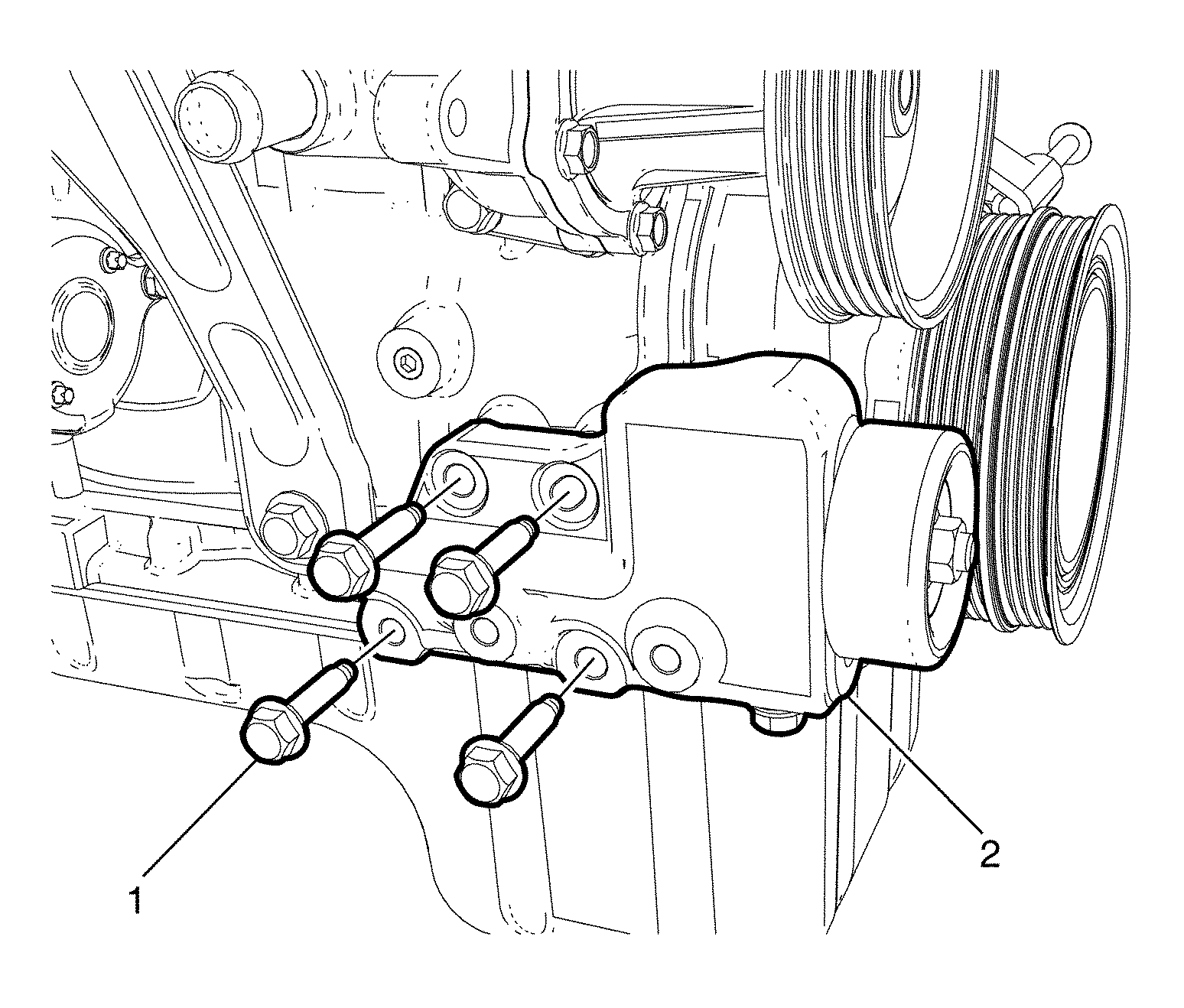

Fig 1: Generator Bracket Retaining Bolts

GM2756988

Courtesy of GENERAL MOTORS COMPANY

Install the generator bracket (2).

CAUTION:

Refer to Fastener Caution .

Tighten the 4 generator bracket retaining bolts to 22 (16 lb ft).
Install the generator. Refer to Generator Replacement .
