Right Side of Engine Compartment Components

Right Side of Engine Compartment Components

Items
1:  K17 Electronic Brake Control Module (JM4/FX3) K17 Electronic Brake Control Module
2:  G19 Rear Window Washer Pump (CD6) G19 Rear Window Washer Pump
3:  G24 Windshield Washer Pump

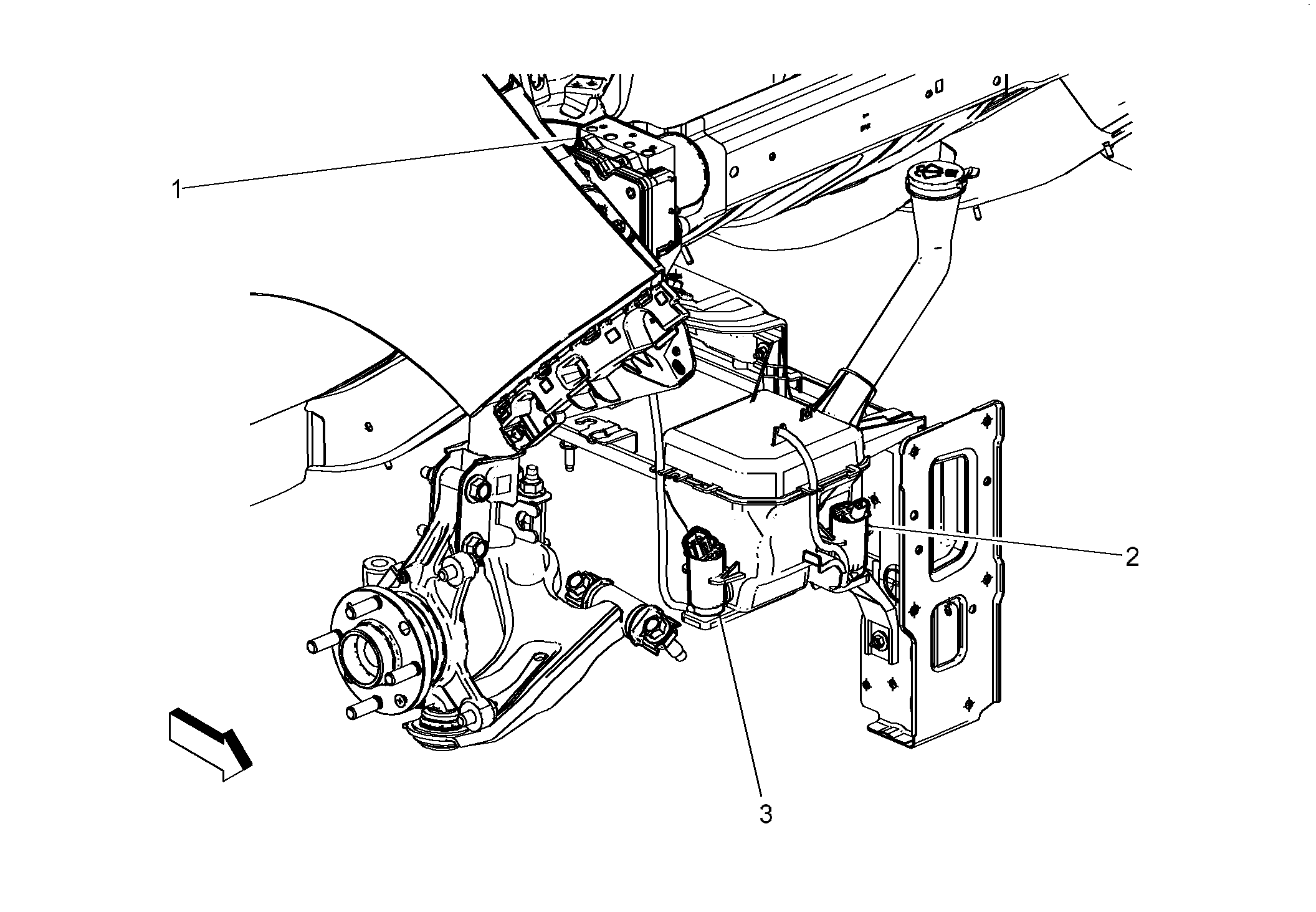

Fig 1: Right Side of Engine Compartment Components
GM2772130Courtesy of GENERAL MOTORS COMPANY
