Instrument Cluster Replacement

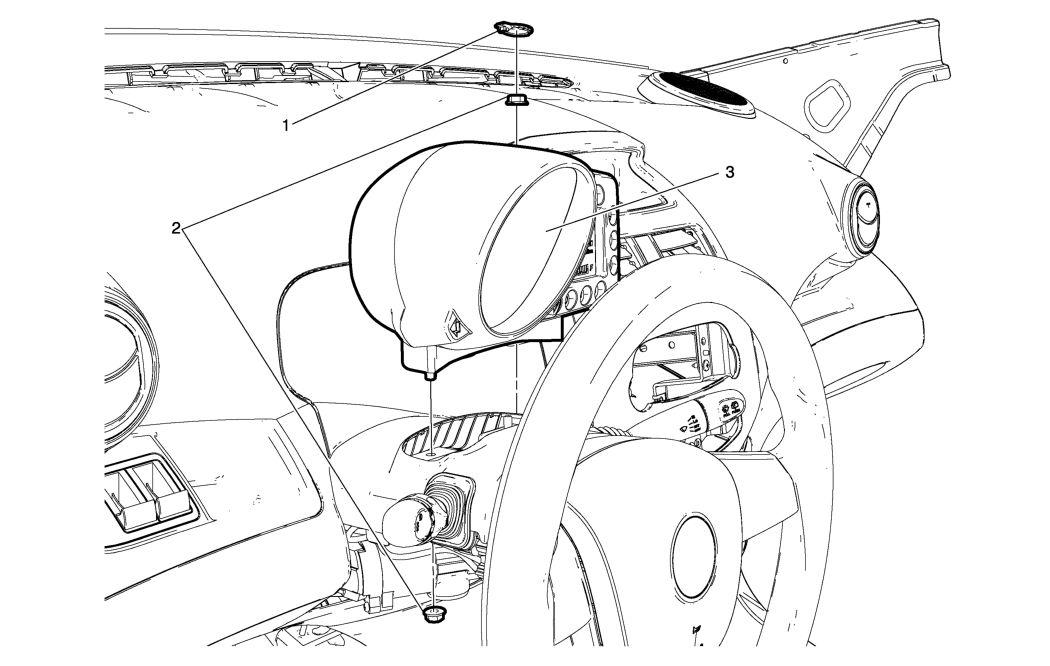

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1	Instrument Cluster Nut Cover
2	Instrument Cluster Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 (89 lb in)
3	Instrument Cluster Assembly Procedure Remove the cluster rear cover. Disconnect electrical components. After repairs, refer to Control Module References .
