Radiator Overflow Hose Replacement
Radiator Overflow Hose Replacement

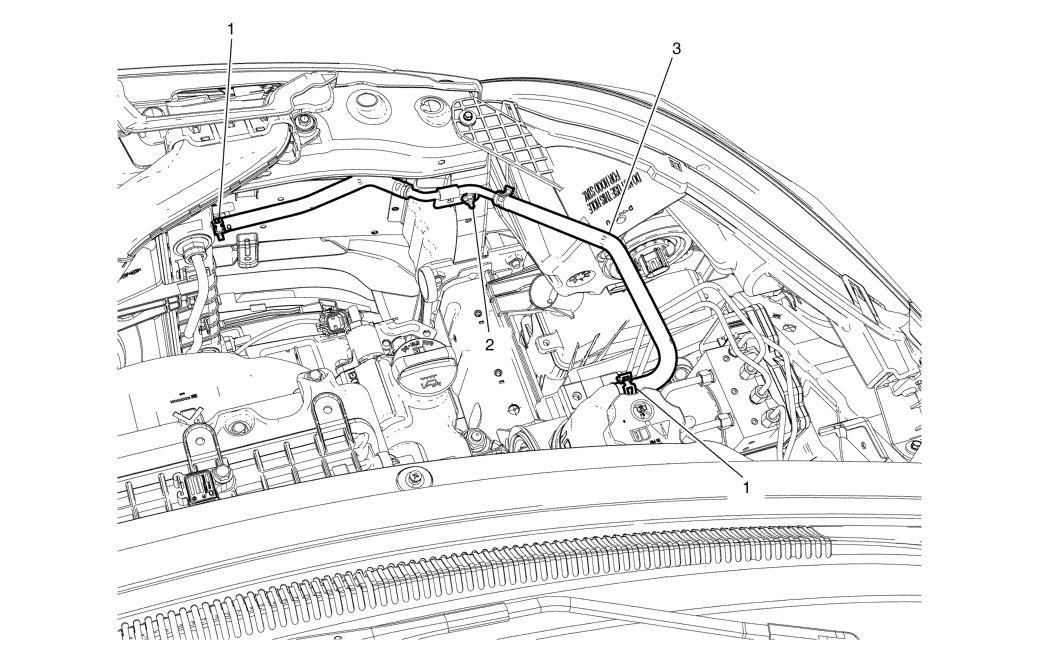

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling . |
|
| 1 | Radiator Overflow Hose Clamp (Qty: 2) |
| 2 | Radiator Overflow Hose Bracket Nut
CAUTION:
Refer to Fastener Caution . Procedure Remove the radiator overflow hose bracket nut. Tighten 9 (80 lb ft) |
| 3 | Radiator Overflow Hose |
