Installation Procedure

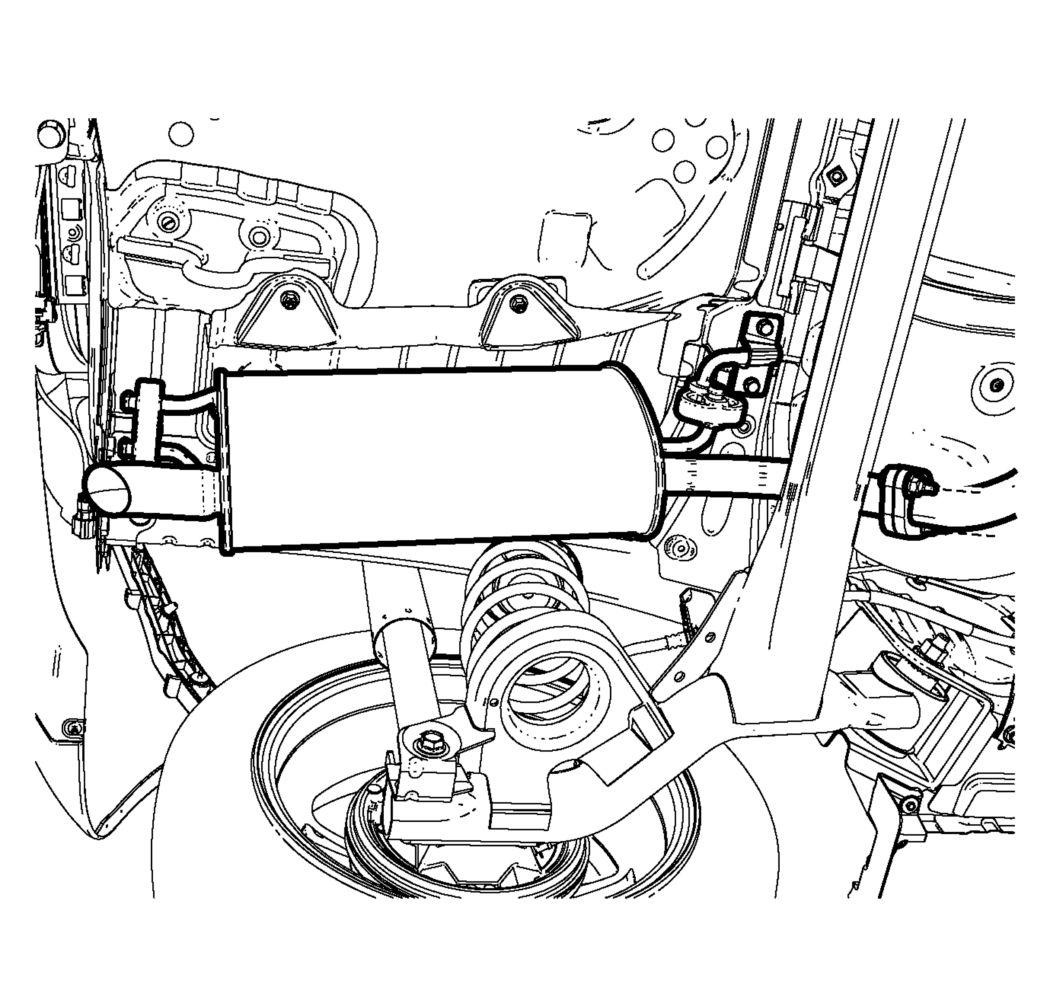

    Fig 1: Exhaust Rear Muffler Assembly
    GM2308886Courtesy of GENERAL MOTORS COMPANY
  1. Connect the exhaust rear muffler assembly to the rubber hanger and install.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the exhaust pipe - rear muffler nut and tighten to 46 (34 lb ft).
