Installation Procedure

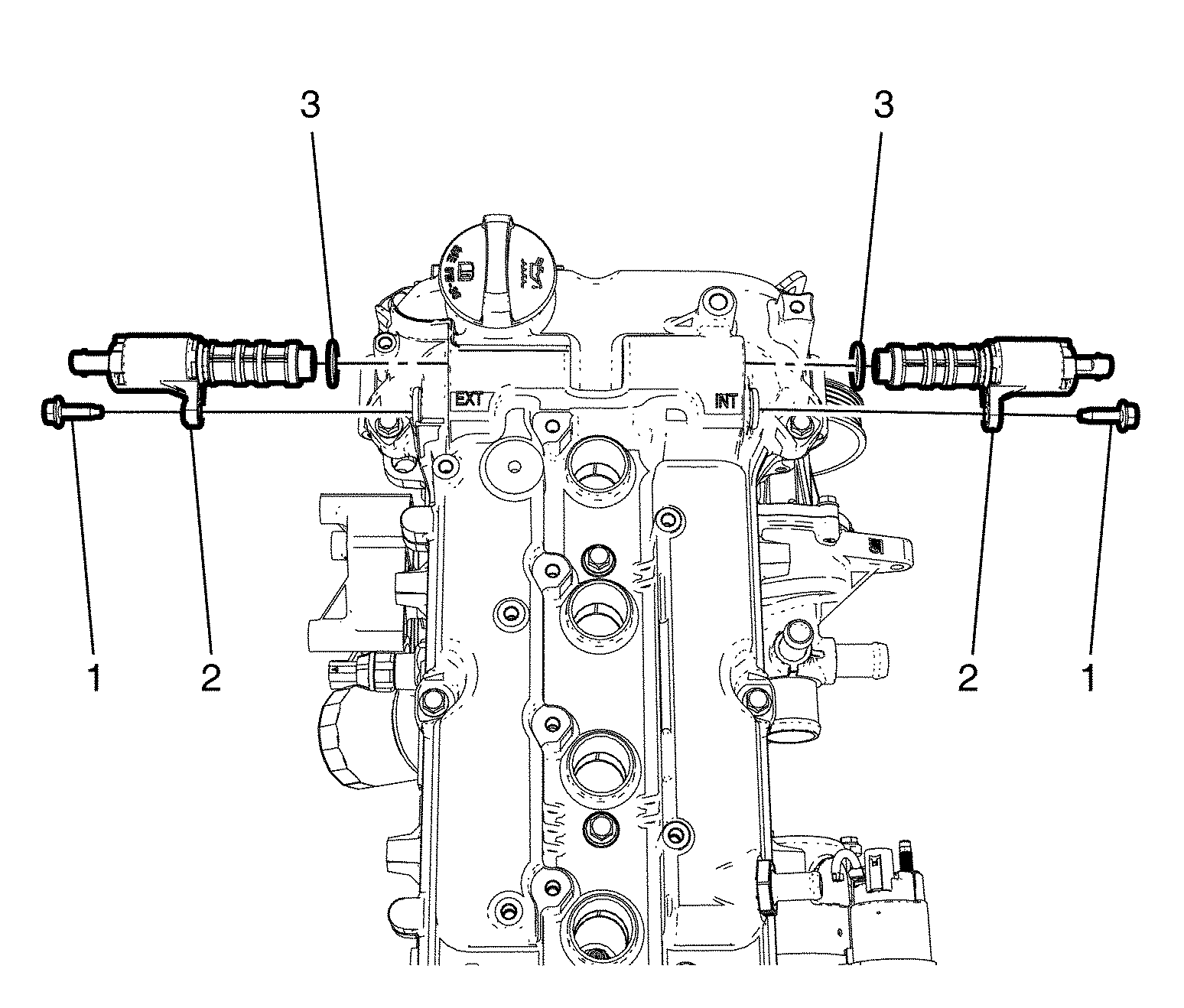

    Fig 1: Camshaft Position Actuator Solenoid Valve Bolts
    GM2810160Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Lubricate the NEW camshaft position actuator solenoid valve seals with NEW engine oil.

  1. Install NEW 2 camshaft position actuator solenoid valve seal (3).
  2. Install the camshaft position actuator solenoid valves (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the camshaft position actuator solenoid valve bolts (1) and tighten to 10 (53 lb in).
  4. Connect the camshaft position actuator solenoid valve electrical connector.

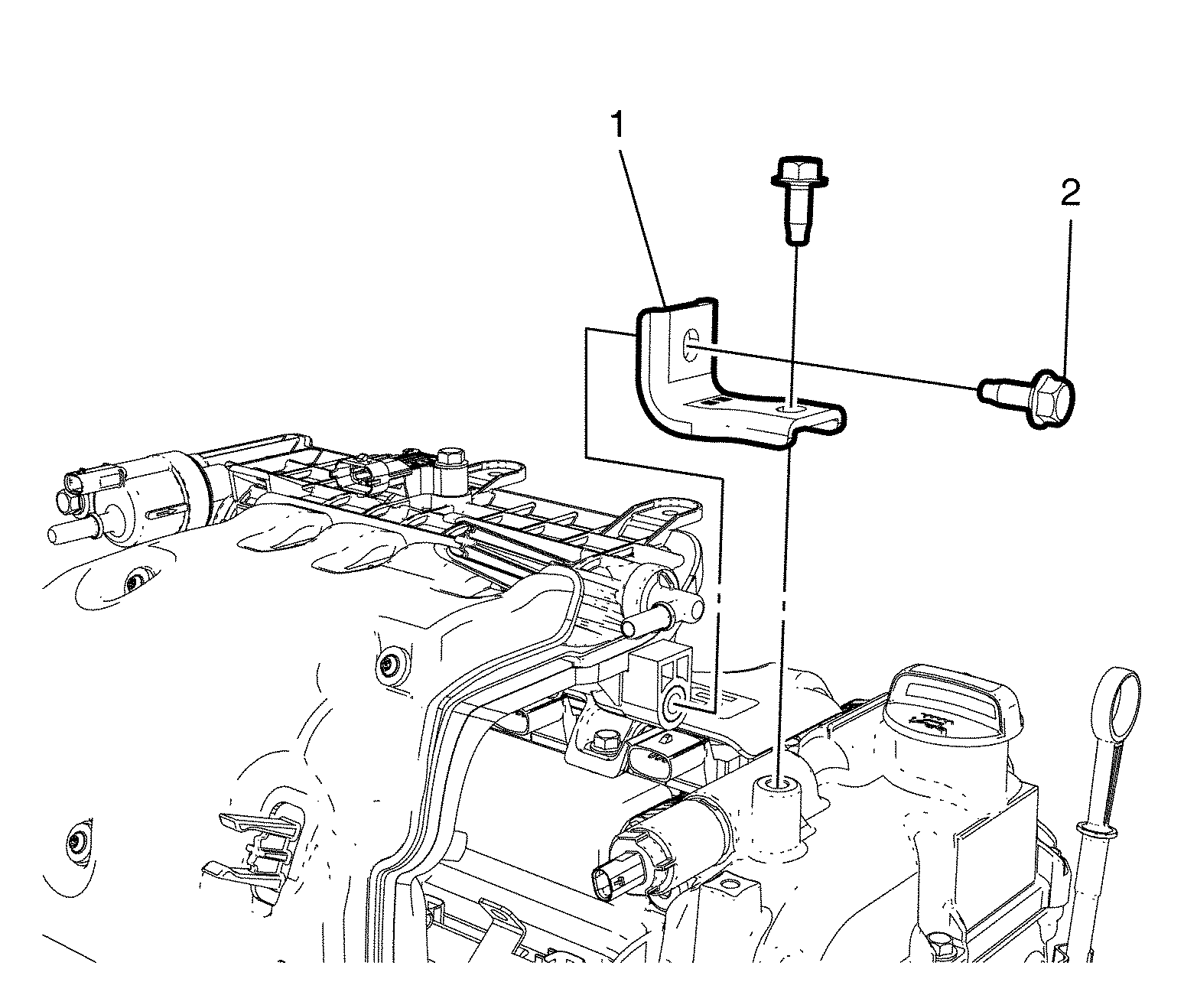

    5. Fig 2: Camshaft Position Actuator Solenoid Valve
    GM2810157Courtesy of GENERAL MOTORS COMPANY
  5. Install the intake manifold upper bracket (1).
  6. Install the 2 intake manifold upper bracket bolt (2) and tighten to 25 (18 lb ft).
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  8. Close the hood.
