Evaporative Emission Canister Replacement

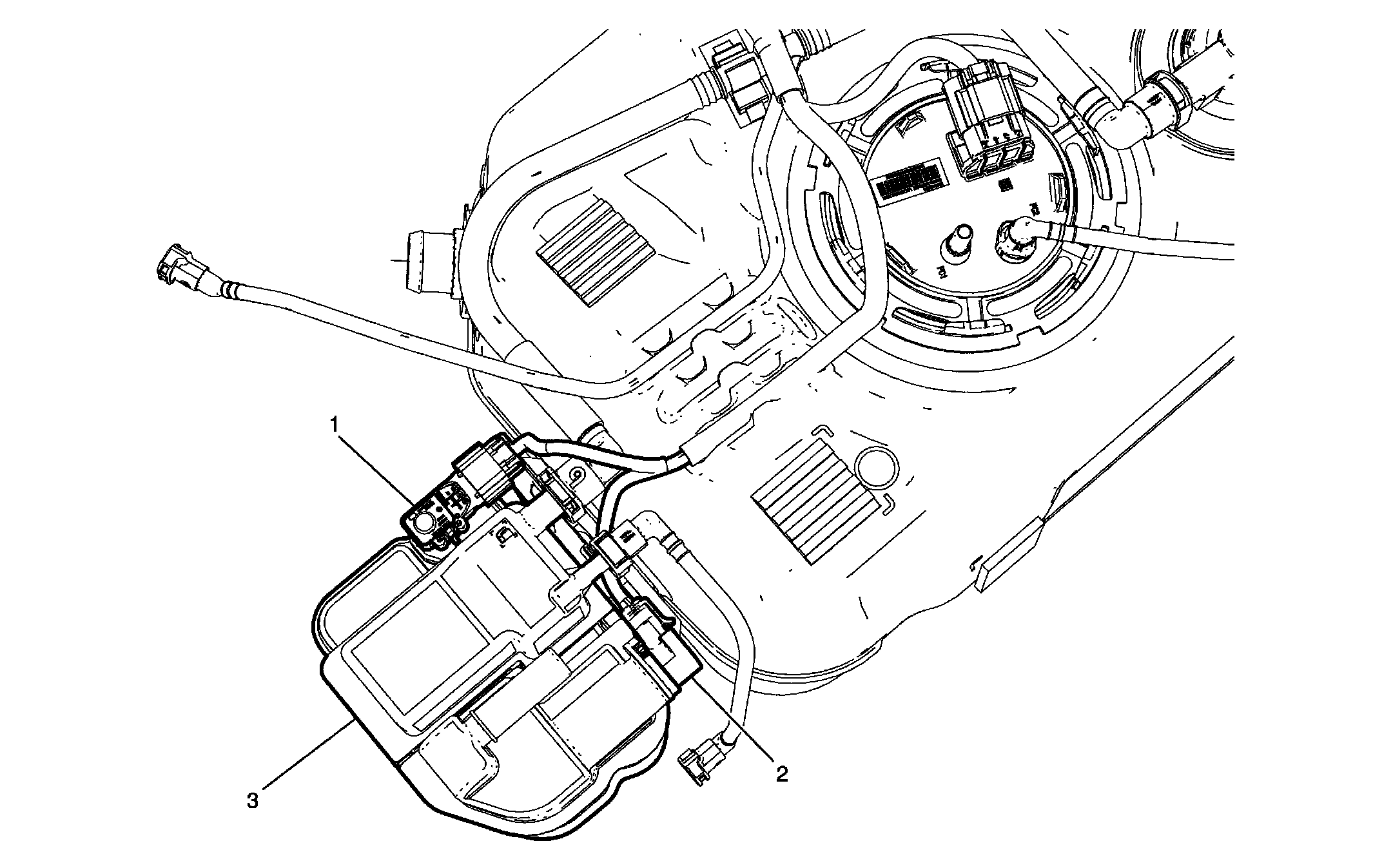

Fig 1: Evaporative Emission Canister
GM2810122Courtesy of GENERAL MOTORS COMPANY
Evaporative Emission Canister Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the fuel tank. Refer to Fuel Tank Replacement .
  2. Disconnect the vent pipe connector and evaporative purge connector.
1 Fuel Tank Pressure Sensor

Procedure

  1. Disconnect the fuel tank pressure sensor electrical connector.
  2. Remove the fuel tank pressure sensor.
2 Evaporative Emission Canister Solenoid Valve

Procedure

  1. Disconnect the evaporative emission canister solenoid valve electrical connector.
  2. Remove the evaporative emission canister solenoid valve.
3 Evaporative Emission Canister
Procedure
Remove the evaporative emission canister pushing up from the evaporative emission canister bracket.
