Fuel Level Sensor Replacement

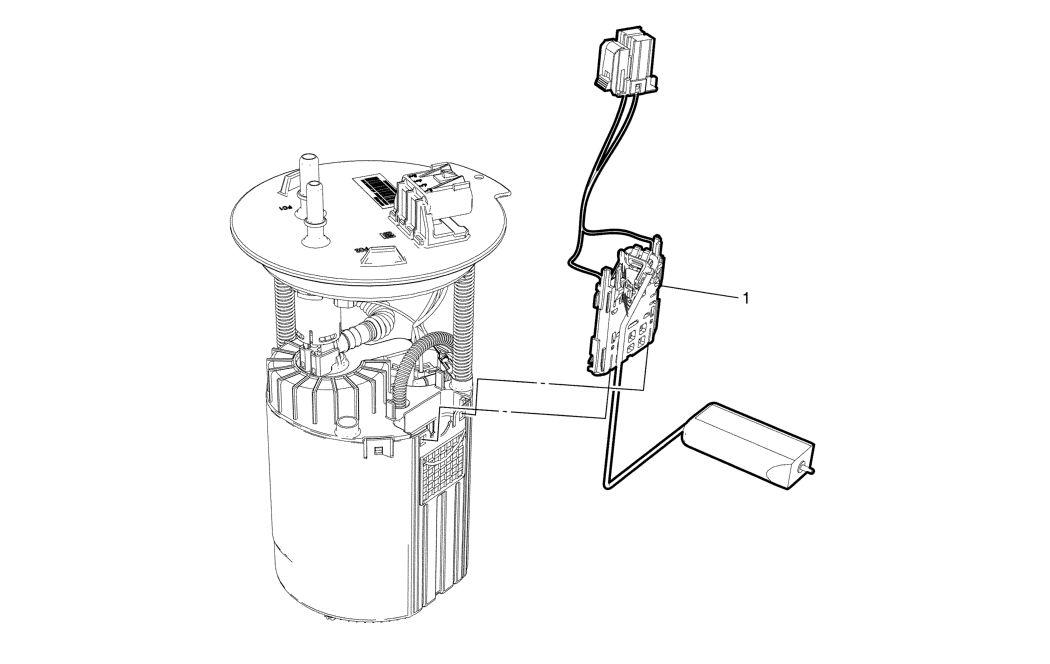

Fig 1: Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel pump. Refer to Fuel Pump Replacement .
1	Fuel Level Sensor Procedure Disconnect the fuel level sensor electrical connector. Remove the fuel level sensor.

Callout

Component Name

Preliminary Procedures
Remove the fuel pump. Refer to Fuel Pump Replacement .

Fuel Level Sensor

Procedure
