Heated Oxygen Sensor Replacement - Sensor 2

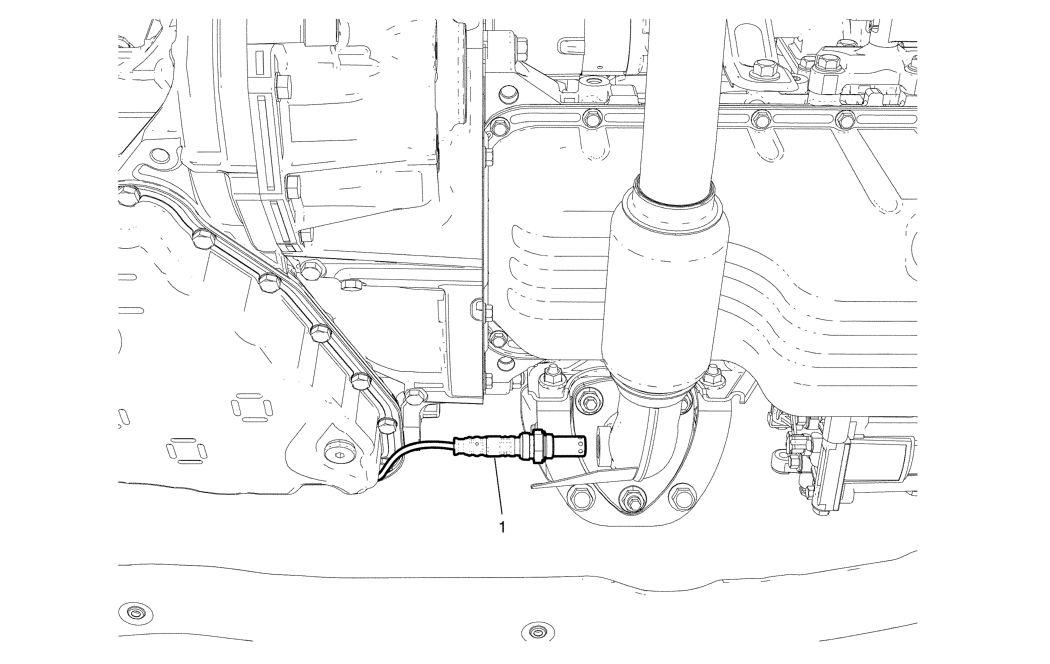

Fig 1: Heated Oxygen Sensor - Sensor 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise the vehicle by its full height. Refer to Lifting and Jacking the Vehicle . Disconnect the heated oxygen sensor-2 connector.
1	Heated Oxygen Sensor-2 CAUTION: Refer to Fastener Caution . Procedure Remove the heated oxygen sensor-2. Tighten 42 (31 lb ft)

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Raise the vehicle by its full height. Refer to Lifting and Jacking the Vehicle .
Disconnect the heated oxygen sensor-2 connector.

Heated Oxygen Sensor-2

CAUTION:

Procedure
Remove the heated oxygen sensor-2.
Tighten
42 (31 lb ft)
