Subsystem References (2 of 5) Wiring Diagram
Subsystem References (2 of 5) Wiring Diagram

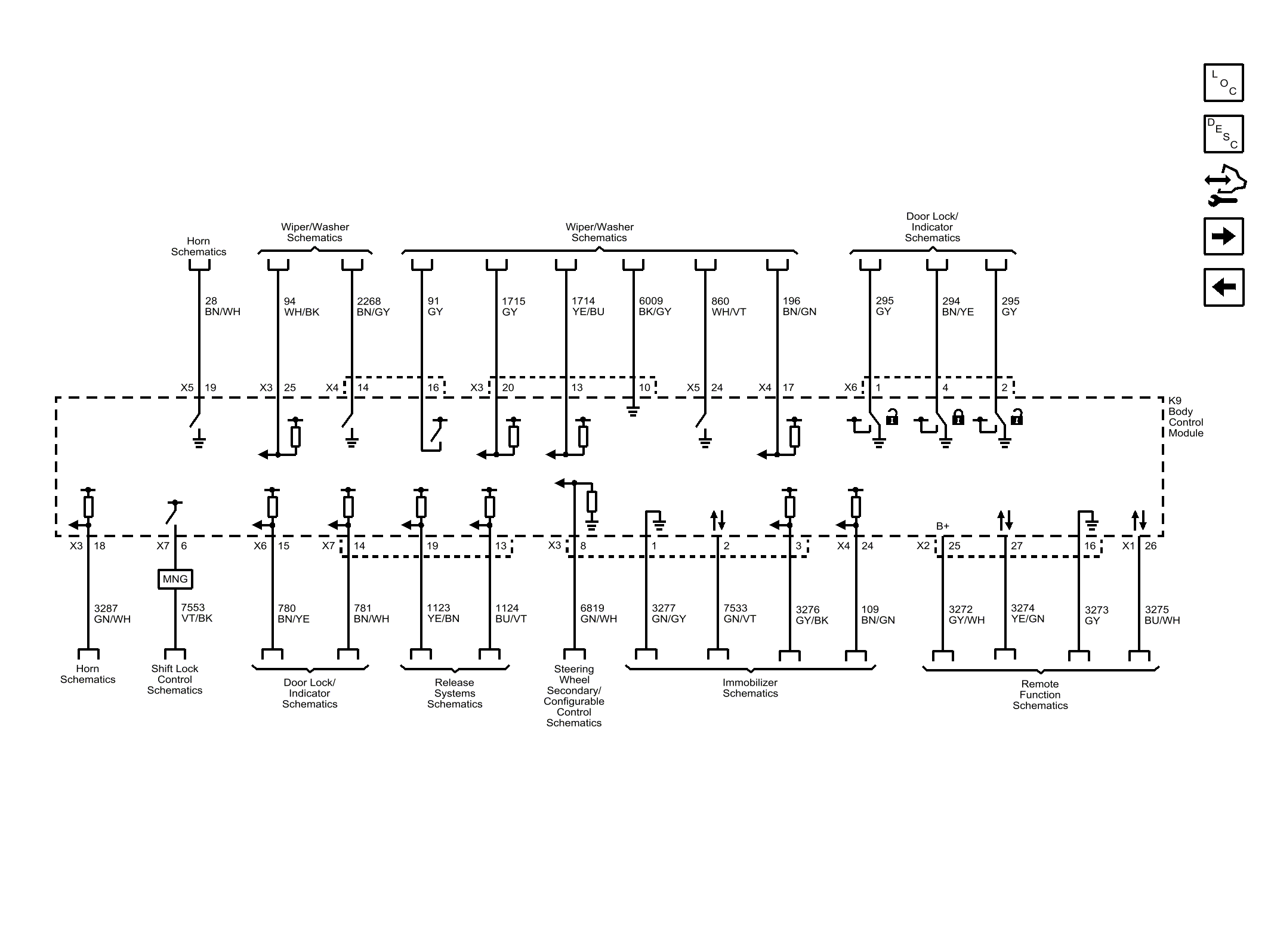

Fig 1: Subsystem References (2 of 5) Wiring Diagram
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
