Data Communication Wiring Schematics
›
Communication Enable Wiring Schematics
Communication Enable Wiring Schematics

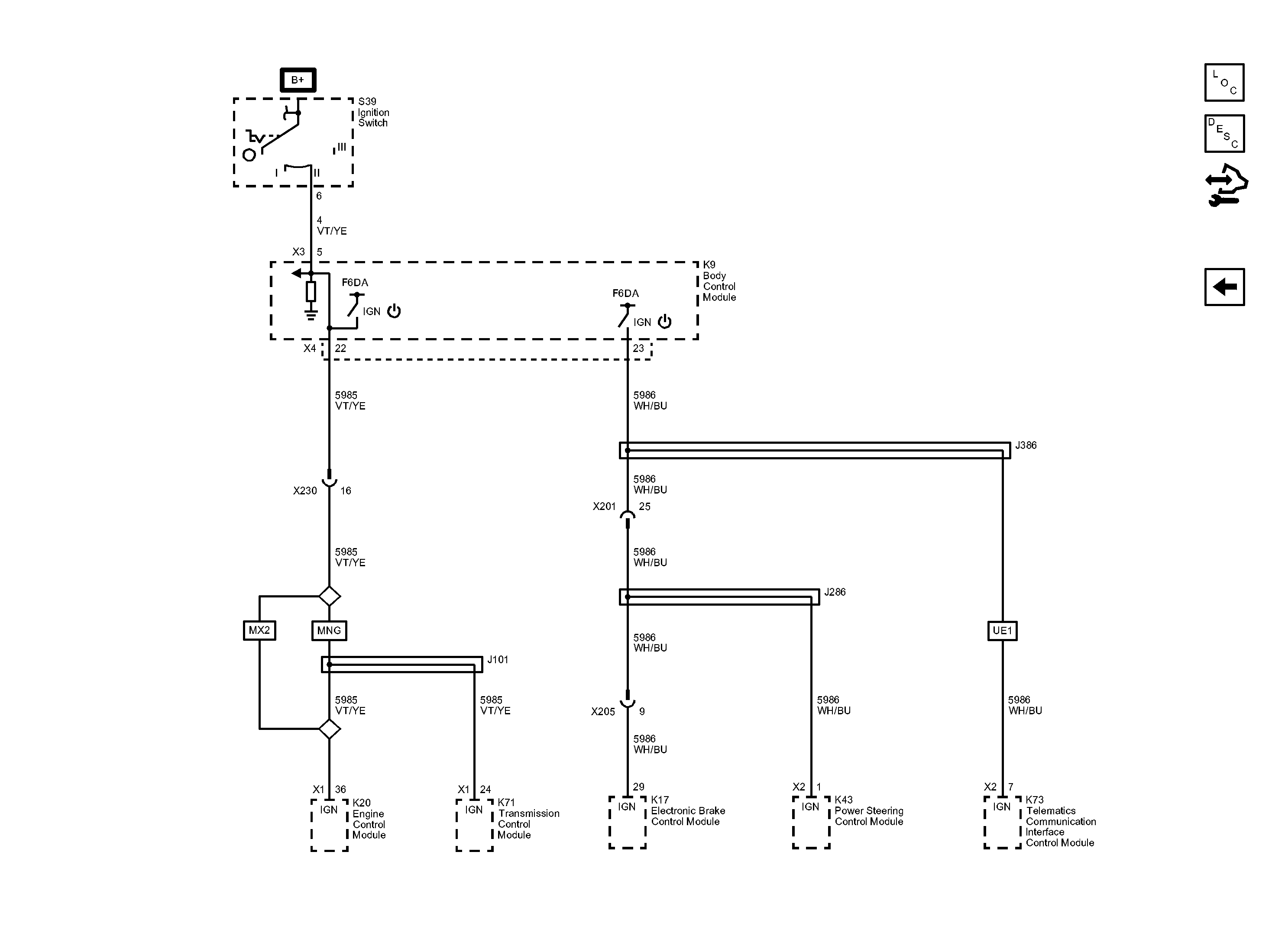

Fig 1: Communication Enable Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
