High Speed GMLAN Bus 2 Wiring Schematics

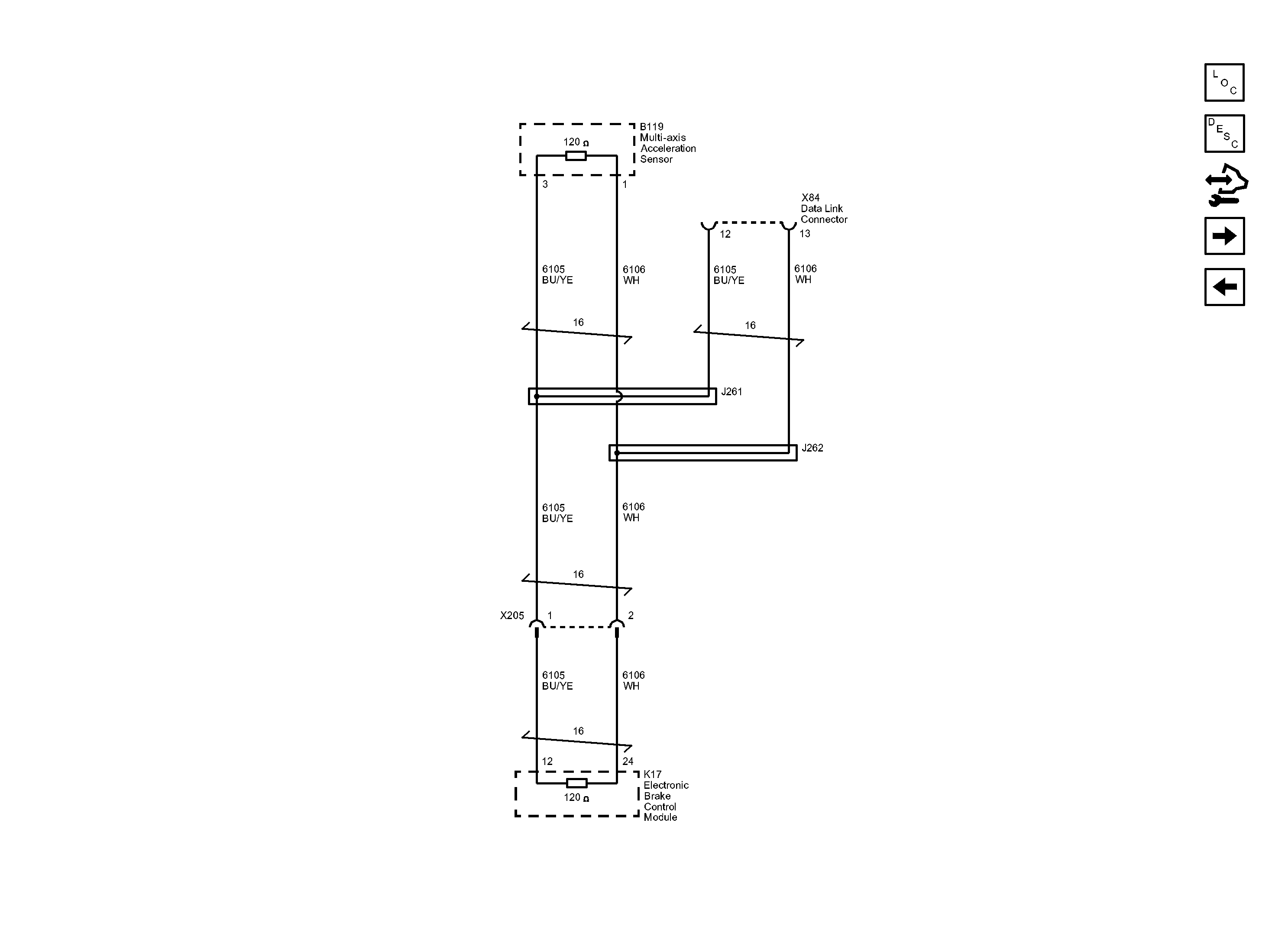

Fig 1: High Speed GMLAN Bus 2 Wiring Schematics
GM2742978Courtesy of GENERAL MOTORS COMPANY
