Airbag Roof Side Rail Module Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

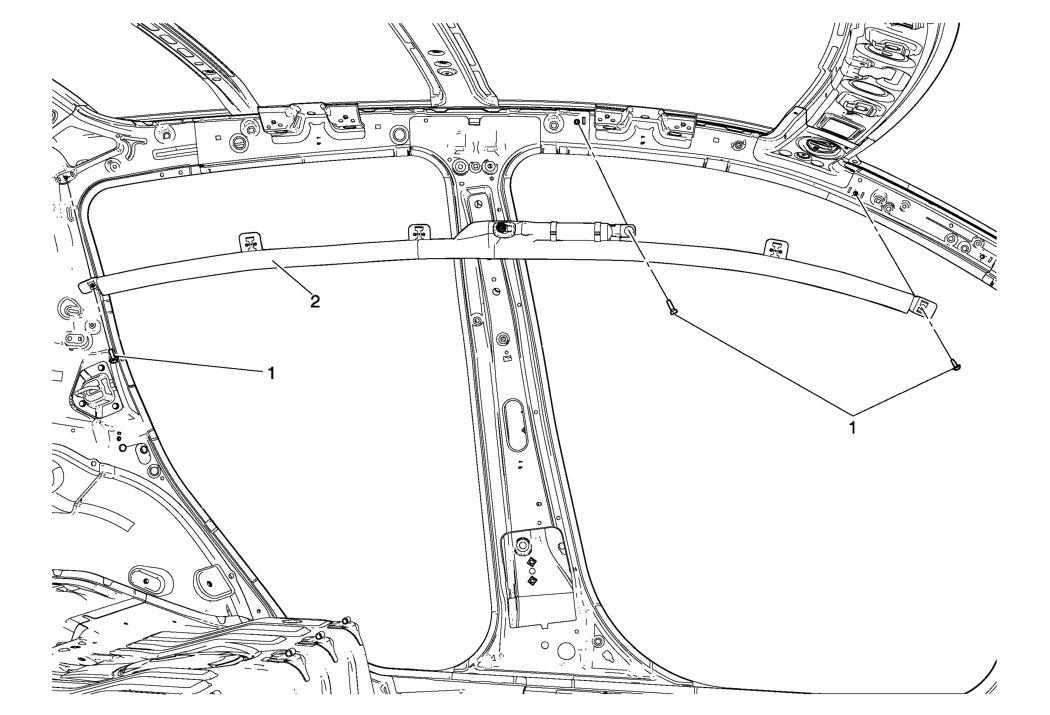

Fig 1: Airbag Roof Side Rail Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. WARNING: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs. Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the headliner. Refer to Headlining Trim Panel Replacement .
1	Inflatable Restraint Roof Rail Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Inflatable Restraint Roof Rail Module Assembly TIP: Disconnect the electrical connector.

Callout

Component Name

WARNING:

In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.

WARNING:

When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs.

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the headliner. Refer to Headlining Trim Panel Replacement .

Inflatable Restraint Roof Rail Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Inflatable Restraint Roof Rail Module Assembly
TIP: Disconnect the electrical connector.
