Front End Inflatable Restraint Discriminating Sensor Replacement (With AY0)

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

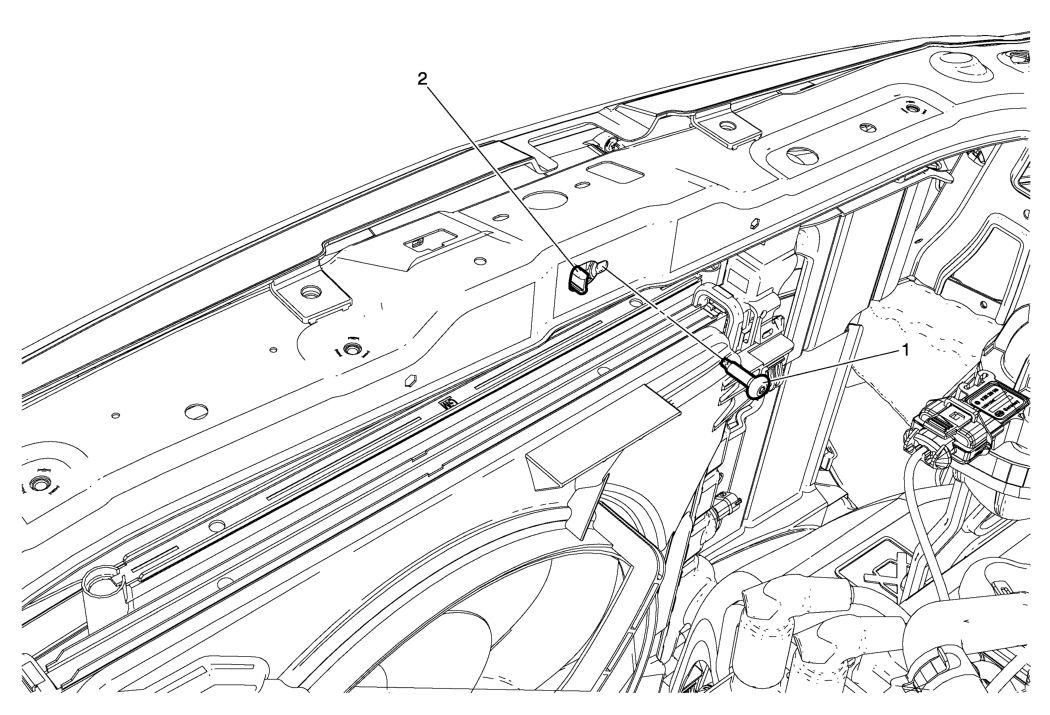

Fig 1: Front End Inflatable Restraint Discriminating Sensor (With AY0)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Front End Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 7.5 (66 lb in)
2	Inflatable Restraint Front End Sensor Assembly Procedure Disconnect electrical connector. Loosen the bolt and slide the sensor out of the keyhole slot. NOTE: The bolt is integral to the sensor assembly, DO NOT remove separately.

Callout

Component Name

WARNING:

Refer to SIR Warning .

WARNING:

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

The seat cushion frame
The seat recliner, if equipped
The seat adjuster
The seat back frame

Failure to do so may cause future personal injury.

Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Front End Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
7.5 (66 lb in)

Inflatable Restraint Front End Sensor Assembly

Procedure

Disconnect electrical connector.
Loosen the bolt and slide the sensor out of the keyhole slot.

NOTE:

The bolt is integral to the sensor assembly, DO NOT remove separately.
