Front Fog Lamp Bulb Replacement (Projection)

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

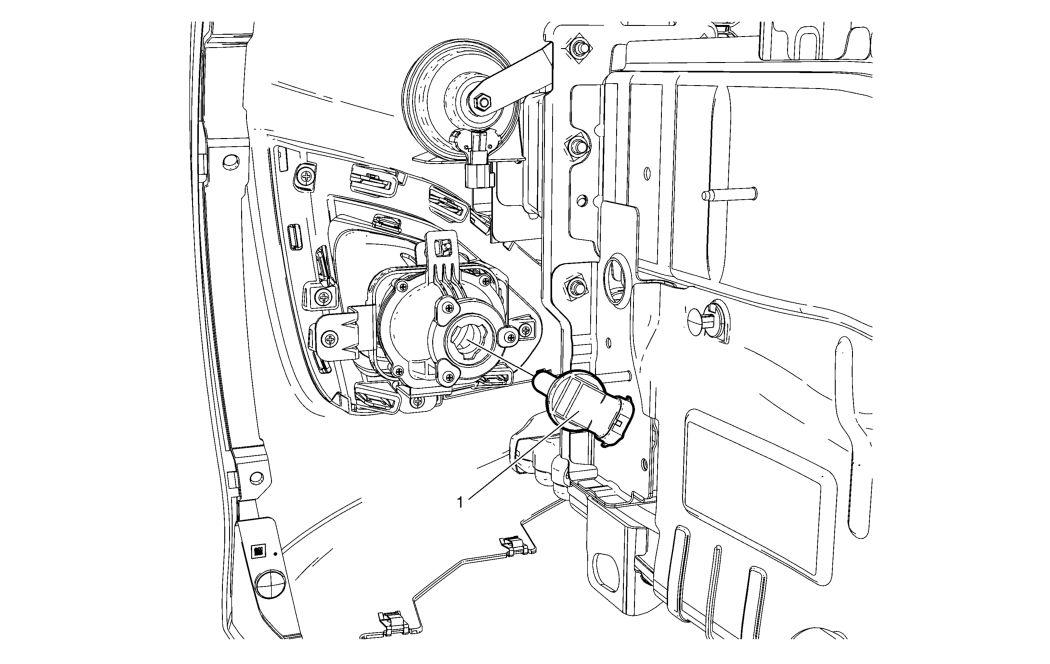

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect fog lamp bulb socket electrical connector.
1	Front Fog Lamp Projector Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise to remove from the lamp housing.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect fog lamp bulb socket electrical connector.

Front Fog Lamp Projector Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure
Rotate the bulb socket counterclockwise to remove from the lamp housing.
