Front Fog Lamp Replacement (Projection)

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

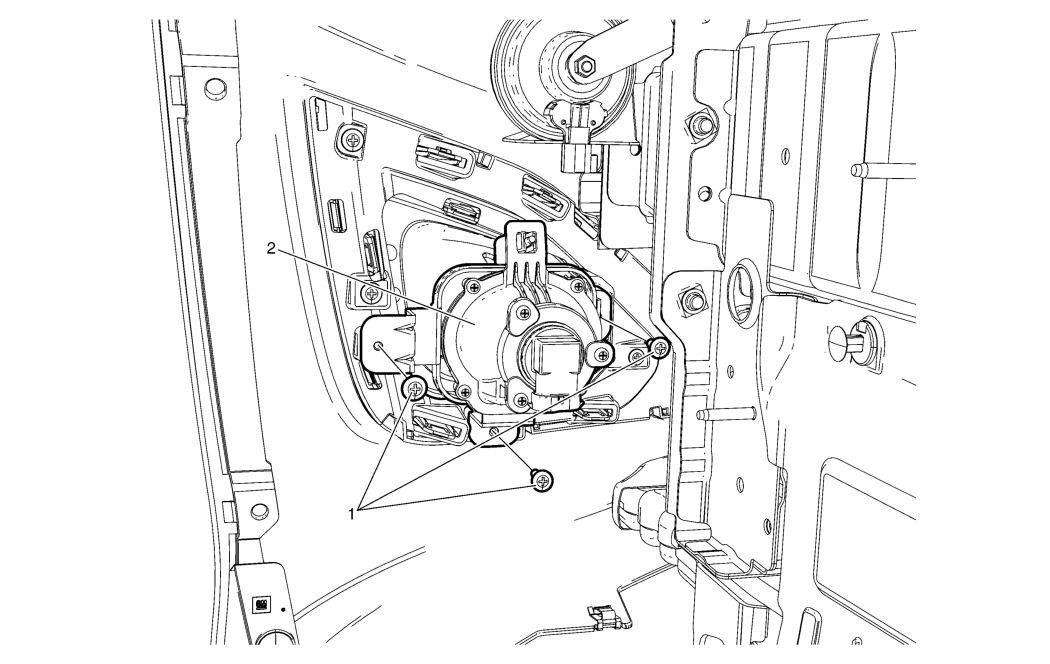

Fig 1: Front Fog Lamp Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect fog lamp bulb socket electrical connector.
1	Front Fog Lamp Screw (Qty: 3)
2	Front Fog Lamp Assembly Procedure Remove the lamp assembly from the fog lamp bracket. Aim the fog lamp after installation. Refer to Fog Lamp Aiming .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect fog lamp bulb socket electrical connector.

Front Fog Lamp Screw (Qty: 3)

Front Fog Lamp Assembly

Procedure

Remove the lamp assembly from the fog lamp bracket.
Aim the fog lamp after installation. Refer to Fog Lamp Aiming .
