Removal Procedure

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

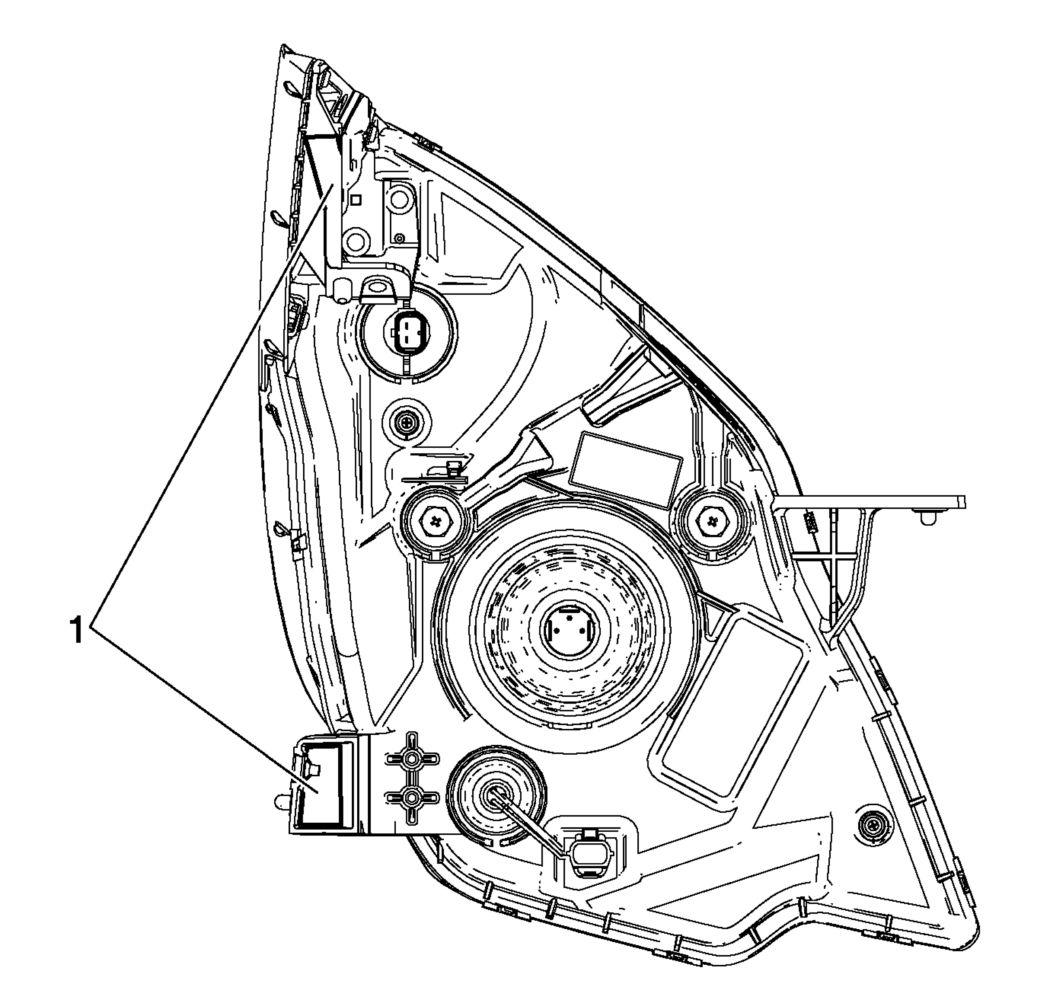

Fig 1: Headlamp Bracket

Courtesy of GENERAL MOTORS COMPANY

Remove the headlamp. Refer to Headlamp Replacement .
There are 2 replacement brackets (1) on each headlamp.

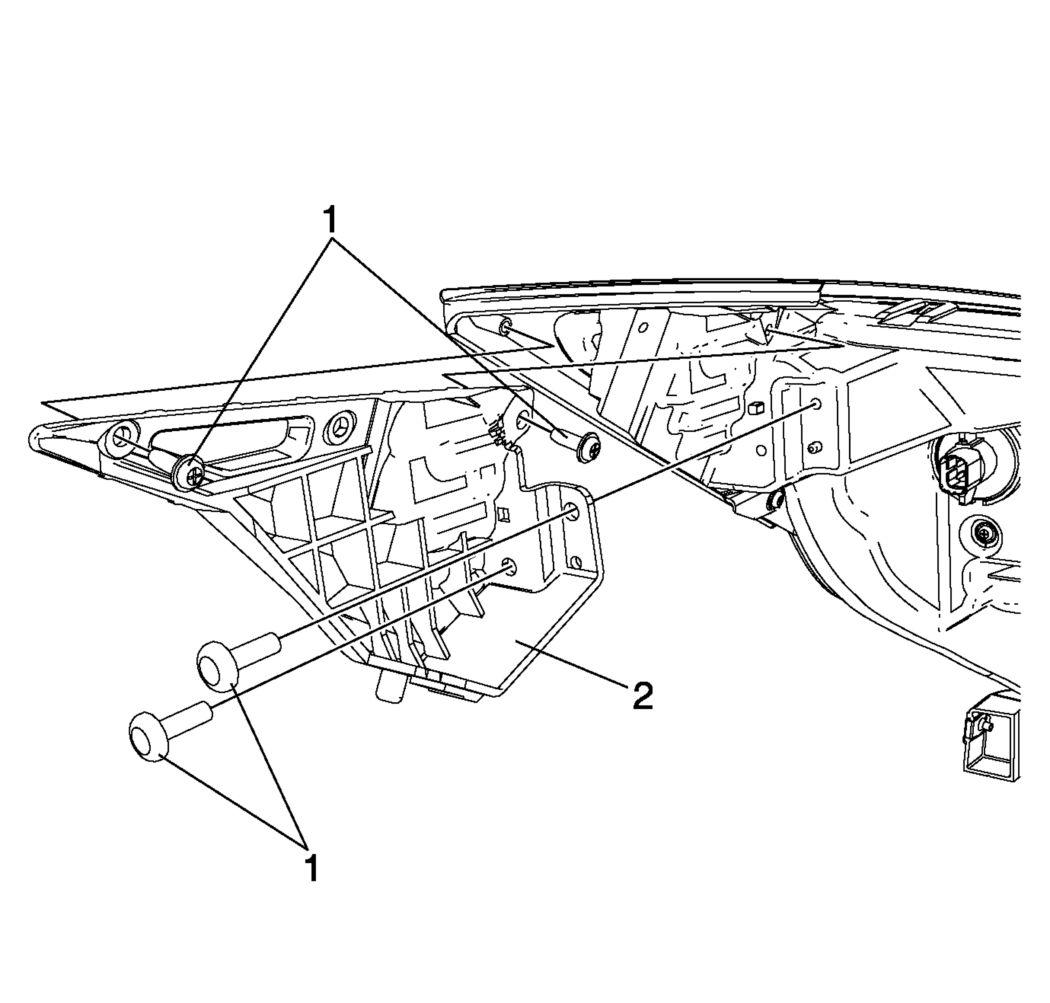

Fig 2: Screws And Bracket

Courtesy of GENERAL MOTORS COMPANY

For bracket, 1 remove the screws (1) and bracket 1 (2).

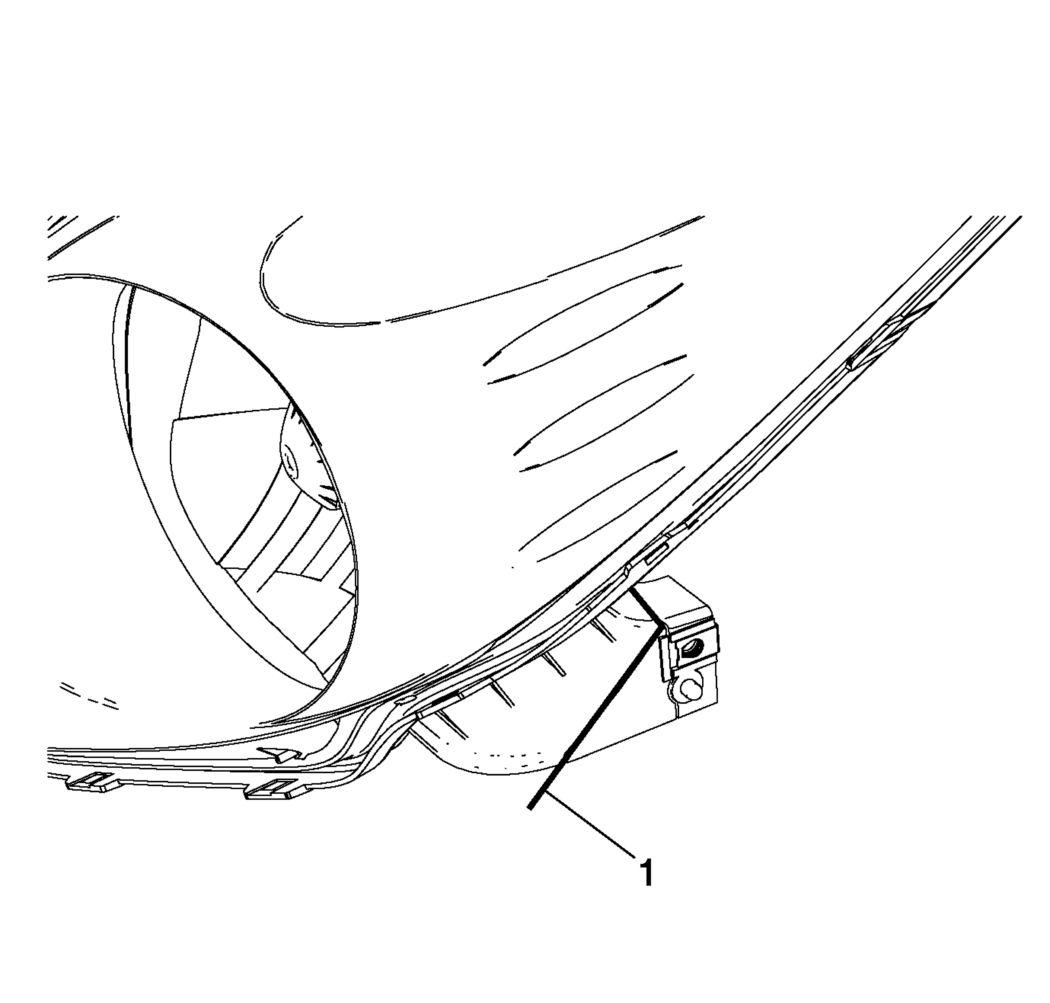

Fig 3: Marked Line

Courtesy of GENERAL MOTORS COMPANY

For bracket 2, cut the bracket along the marked line (1).
