Installation Procedure
WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
- Install the radiator outlet hose to the water pump outlet pipe.

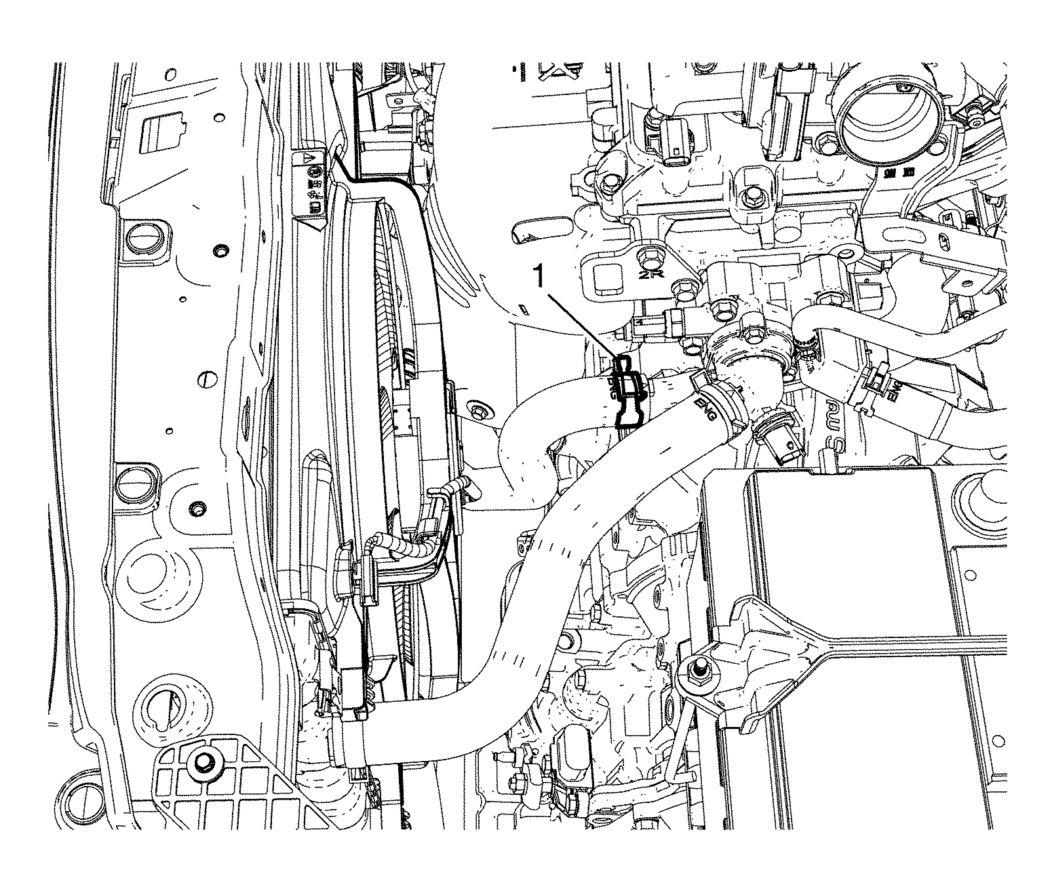

- Install the radiator outlet hose clamp (1).
- Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
- Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
- Install the radiator outlet hose to the radiator.

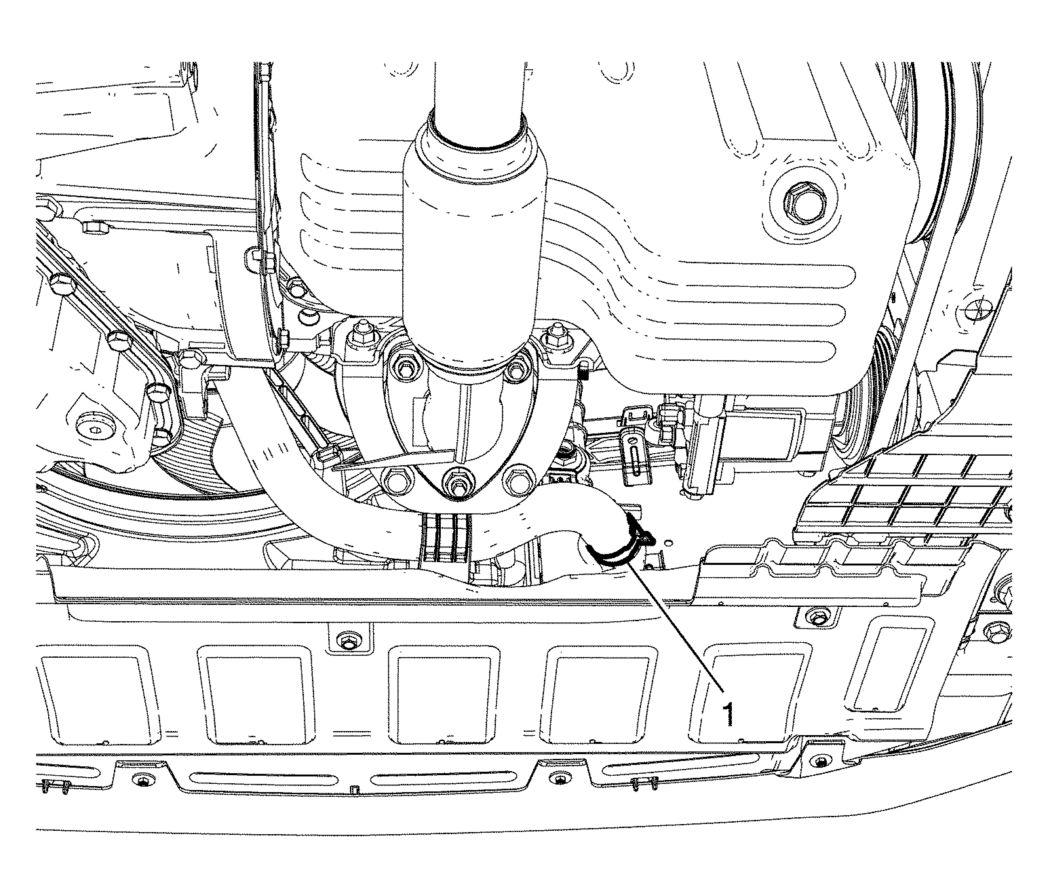

- Install the radiator outlet hose clamp (1).
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
- Fill the cooling system. Refer to Cooling System Draining and Filling .
