Radiator Support Replacement

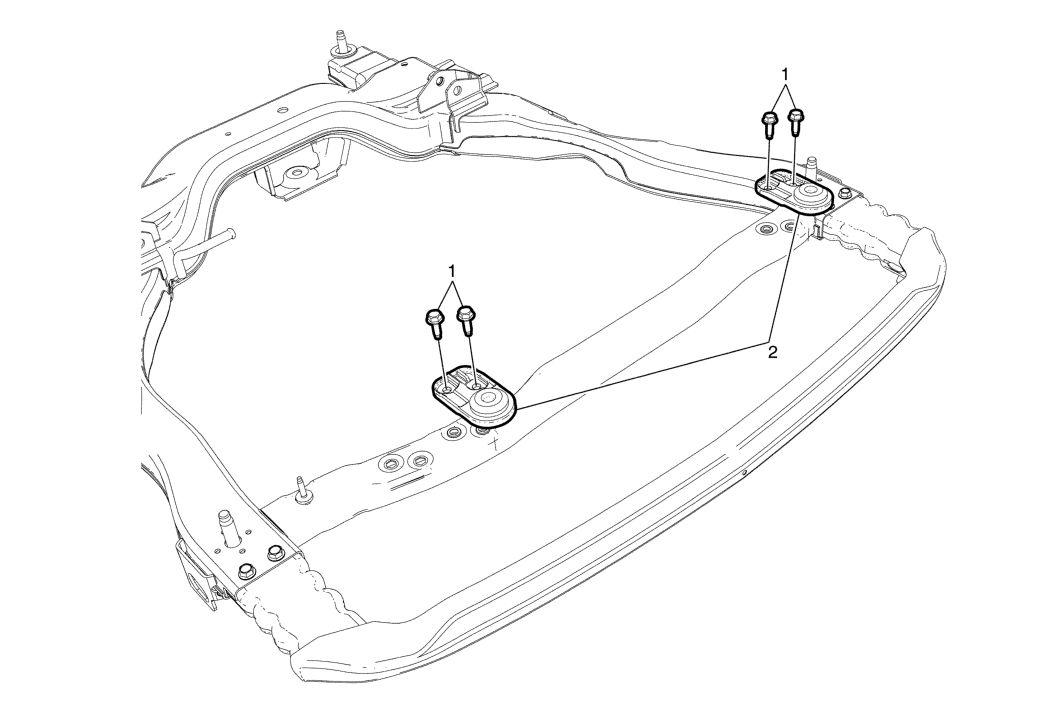

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the condenser from the radiator. Refer to Radiator Replacement . |
|
| 1 | Radiator Support Mounting Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 22 (16 lb ft) |
| 2 | Radiator Support Procedure Rotate the radiator support and disconnect it from the radiator. |
