Direct Clutch

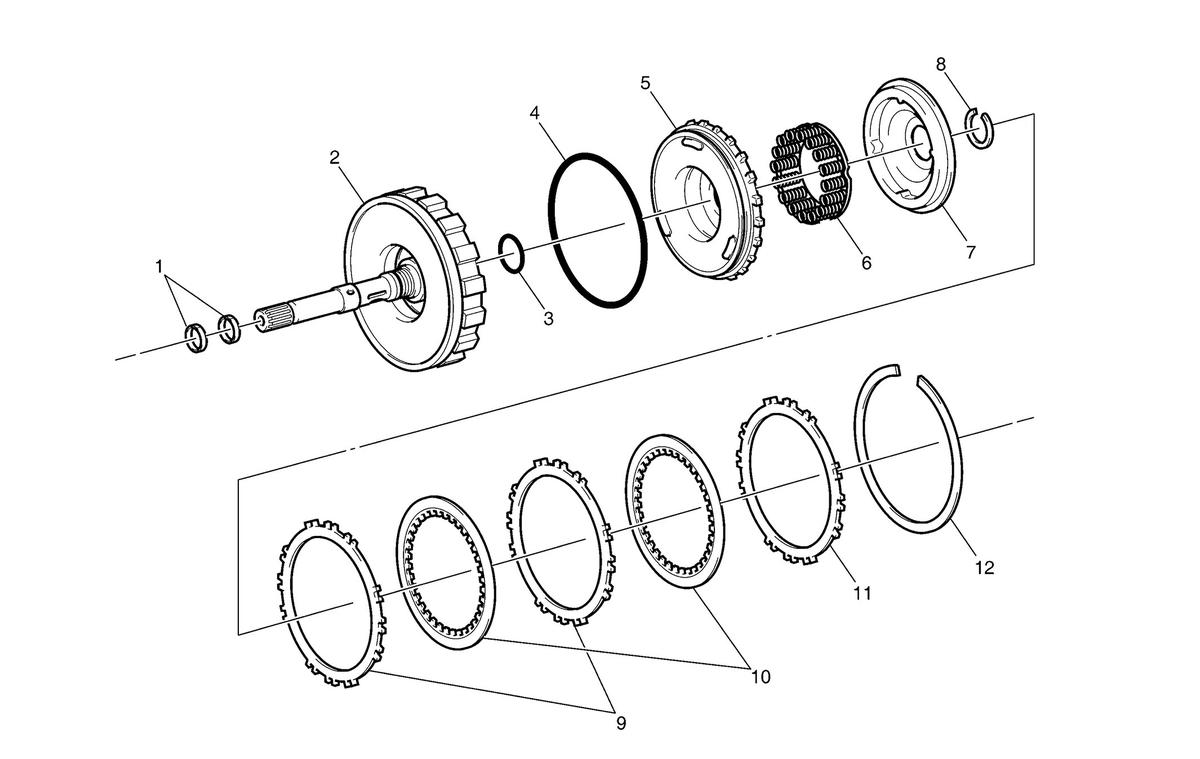

Fig 1: Exploded View Of Direct Clutch

GM2753273

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Input Shaft Oil Seal Ring
2	Input Shaft
3	O-Ring
4	O-Ring
5	Direct Clutch Piston
6	Direct Clutch Return Spring
7	Clutch No. 2 Balancer
8	Snap Ring
9	Brake No. 3 Plate
10	O/D Brake Disc
11	Brake No. 3 Flange
12	Snap Ring
