Valve Body

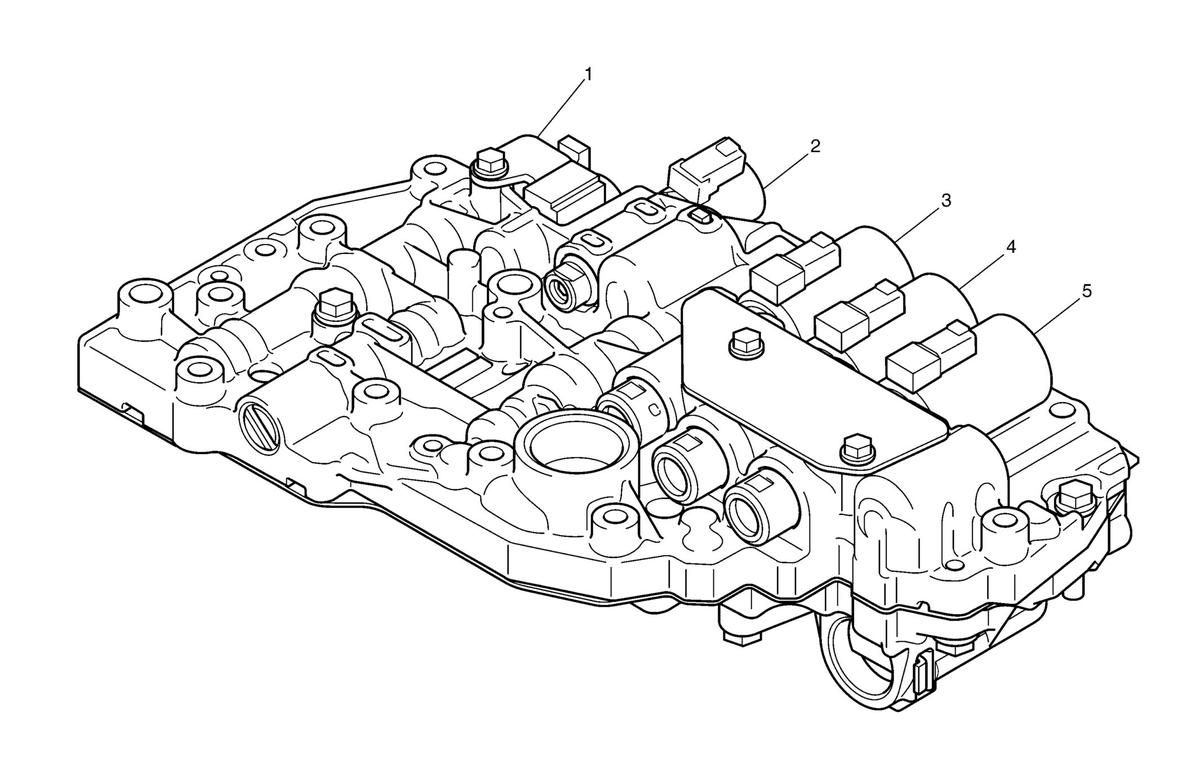

Fig 1: Pressure Control Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Shift Solenoid Valve (S1)
2	Lock-Up Control Solenoid Valve (SLU)
3	Pressure Control Solenoid Valve 3 (SLB1)
4	Pressure Control Solenoid Valve 2 (SLC2)
5	Pressure Control Solenoid Valve 1 (SLC1)
