Rear Side Door Window Channel Replacement

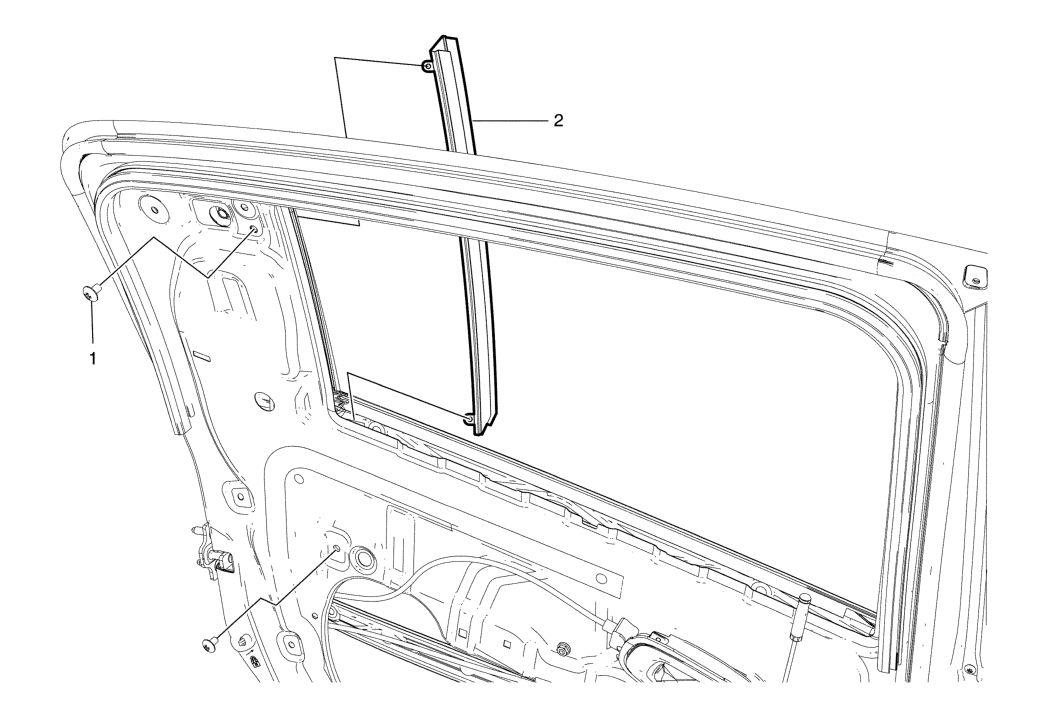

Fig 1: Rear Side Door Window Channel

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Channel Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Channel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
2	Rear Side Door Window Channel Assembly
