Keyless Entry Wiring Schematics

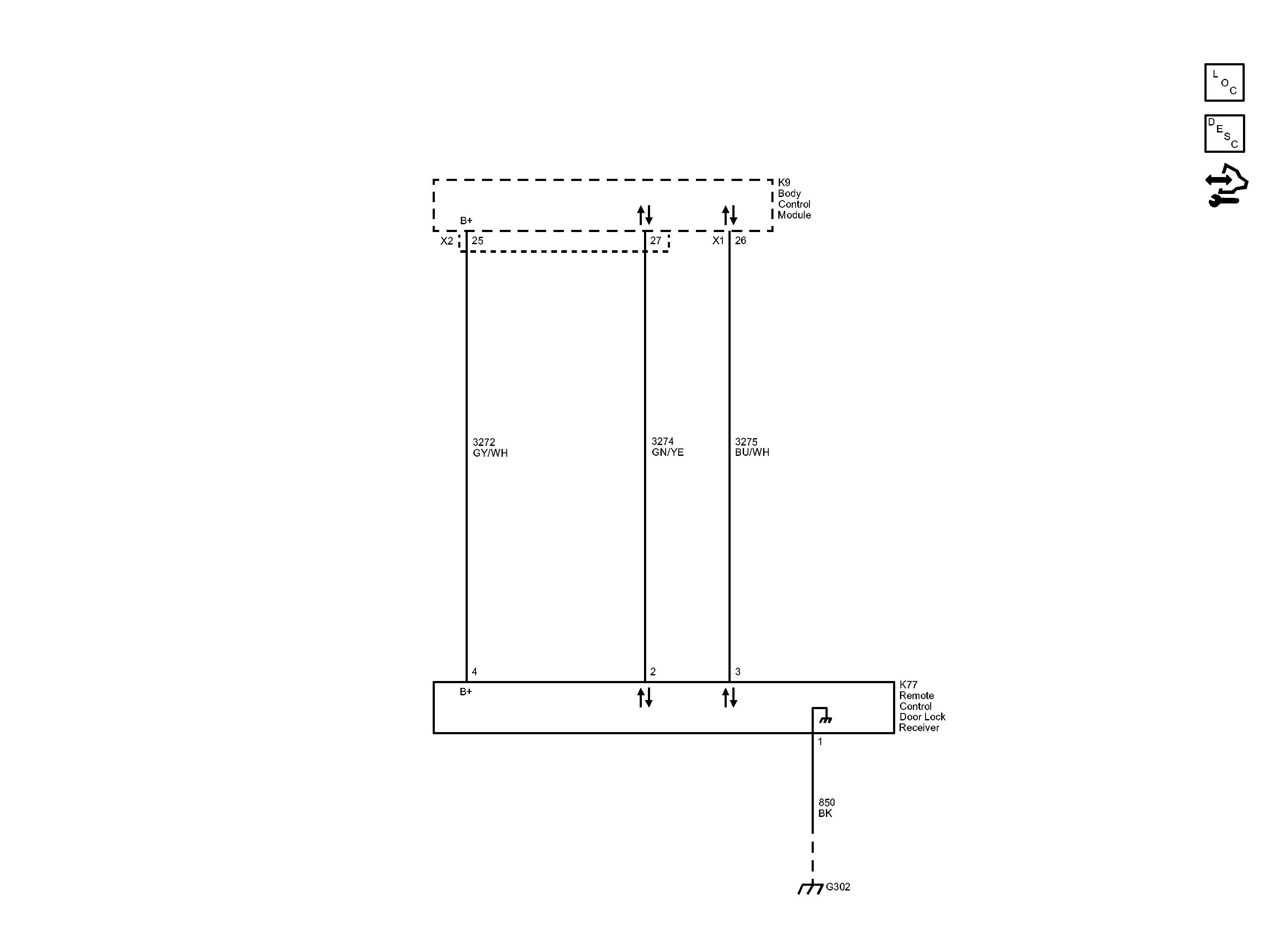

Fig 1: Keyless Entry Wiring Schematics

GM2743128

Courtesy of GENERAL MOTORS COMPANY
