Serial Data Communication Enable and Wake-up Circuits

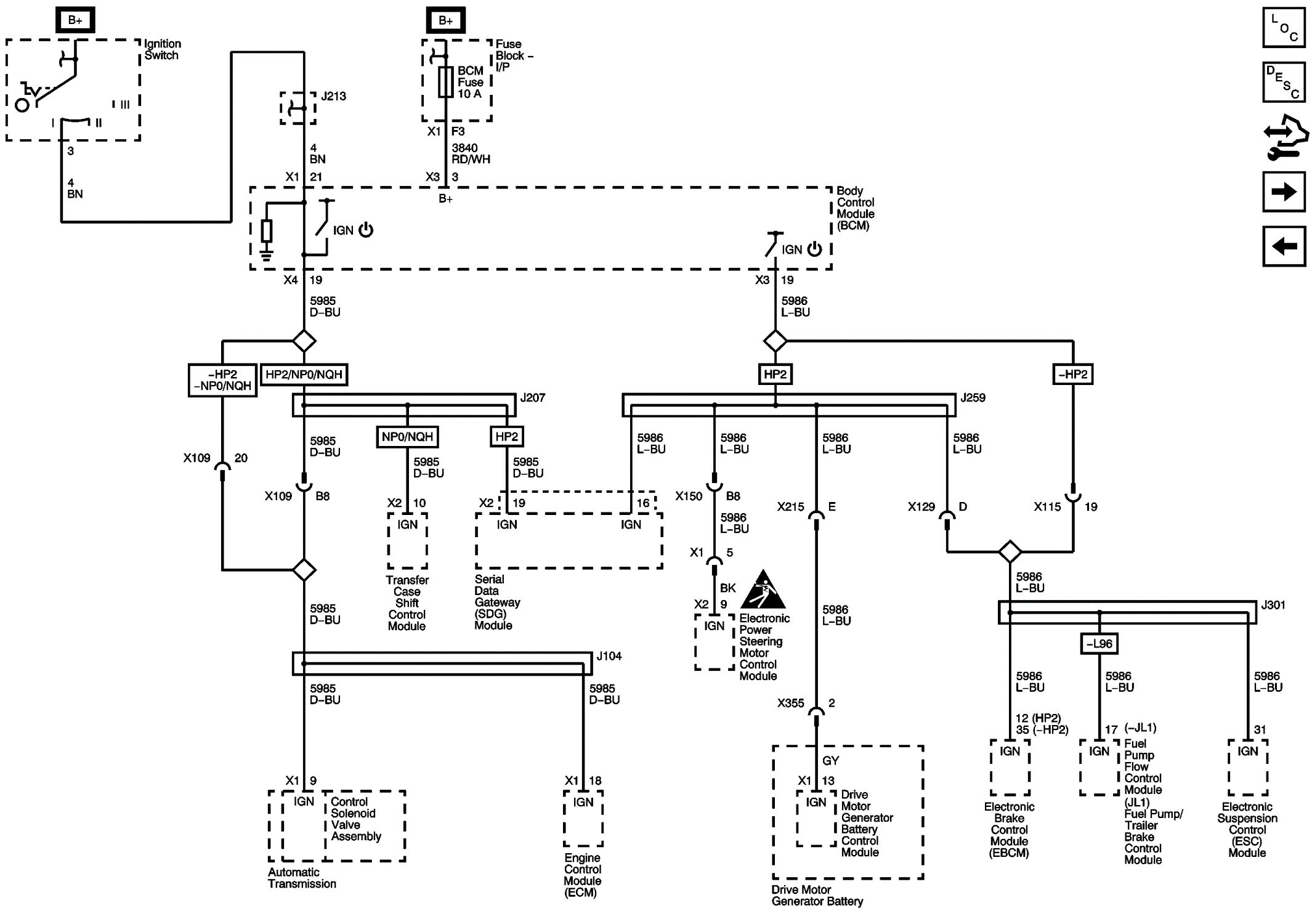

Fig 1: Serial Data Communication Enable and Wake-up Circuits
GM2761639Courtesy of GENERAL MOTORS COMPANY
