Antilock Brake System Schematics
›
Power, Ground, Serial Data and Traction Control
Power, Ground, Serial Data and Traction Control

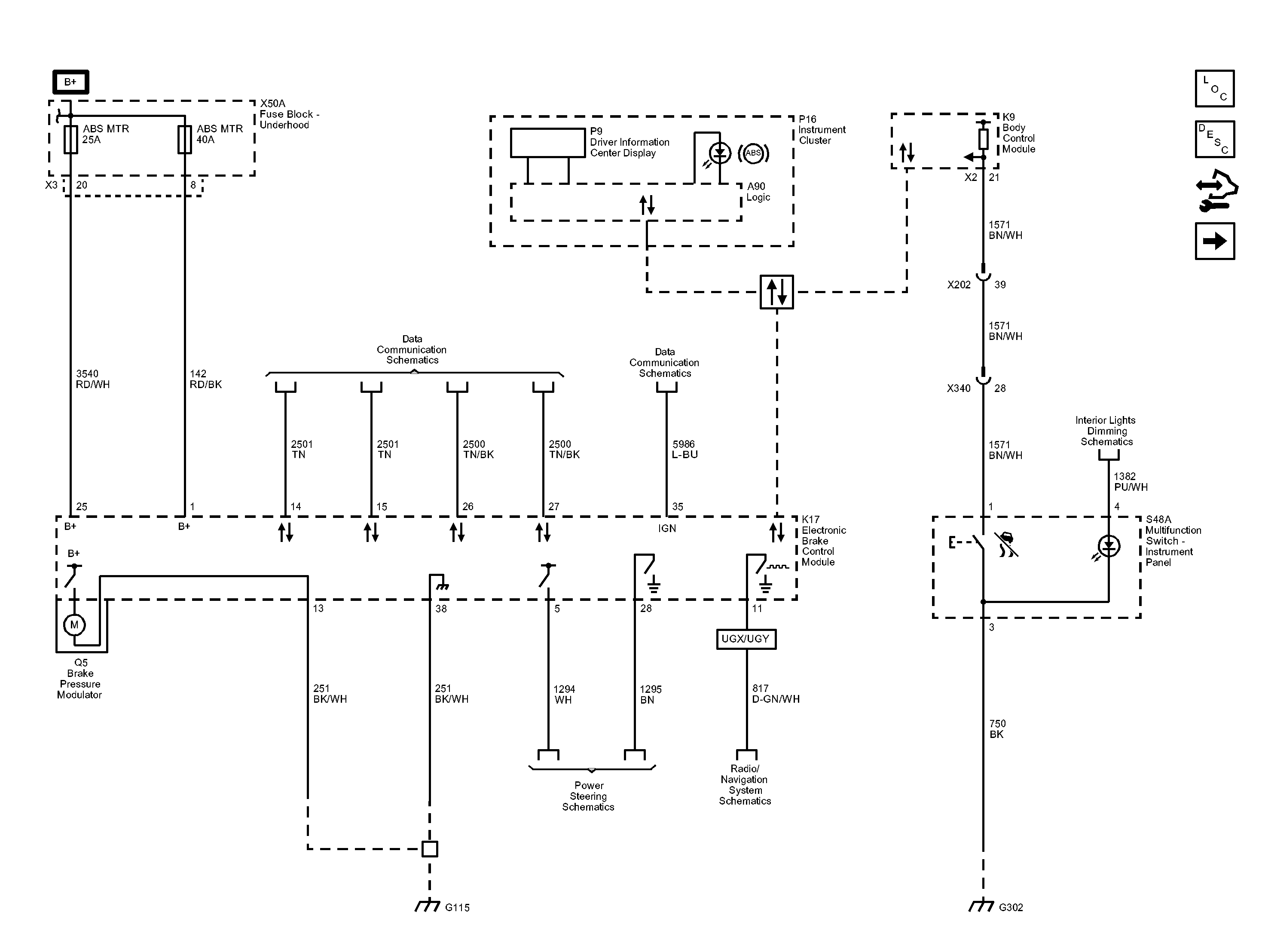

Fig 1: Power, Ground, Serial Data And Traction Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
