Starting and Charging Schematics: Charging

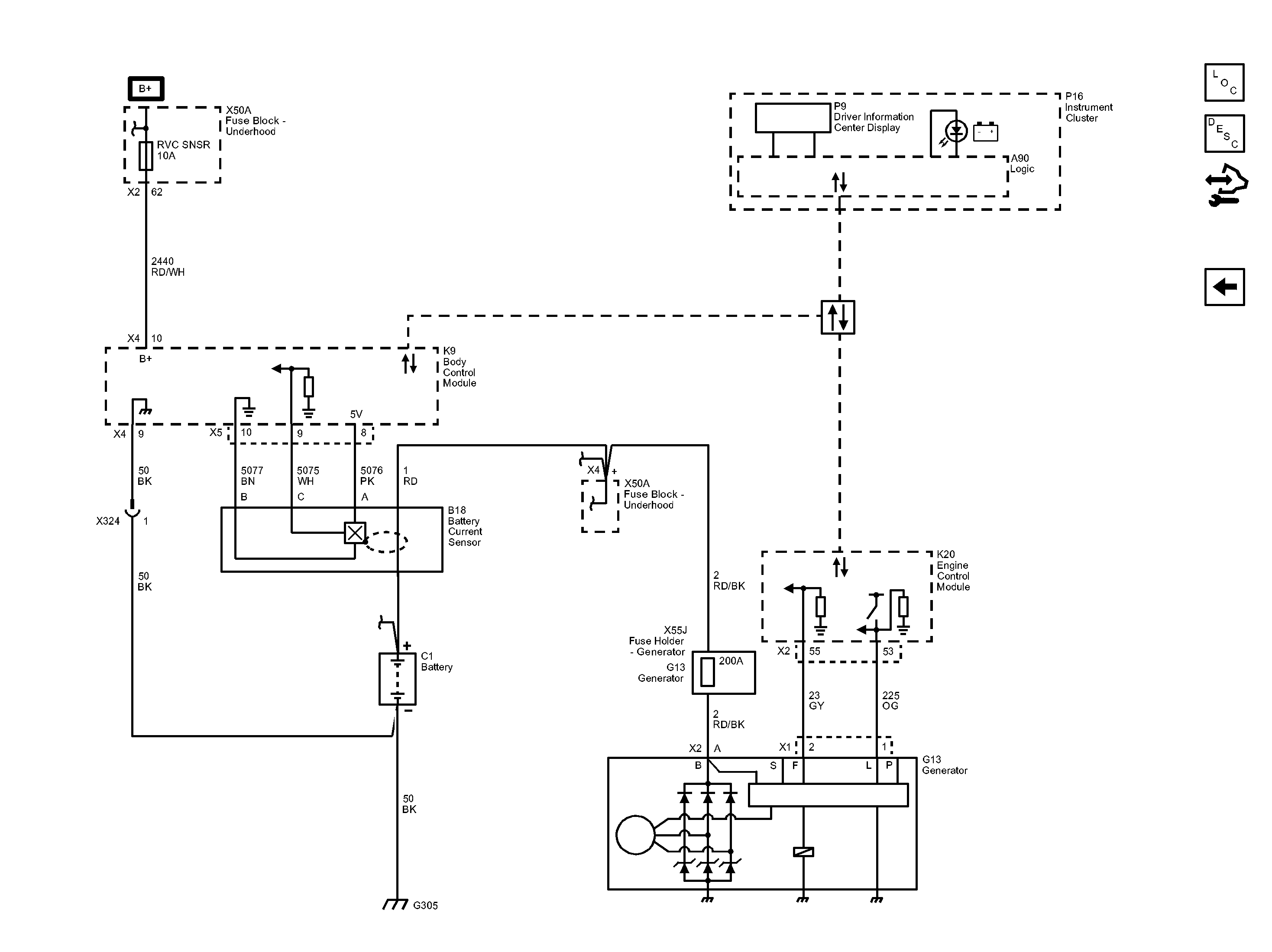

Fig 1: Charging System Wiring Schematic
GM2867621Courtesy of GENERAL MOTORS COMPANY
